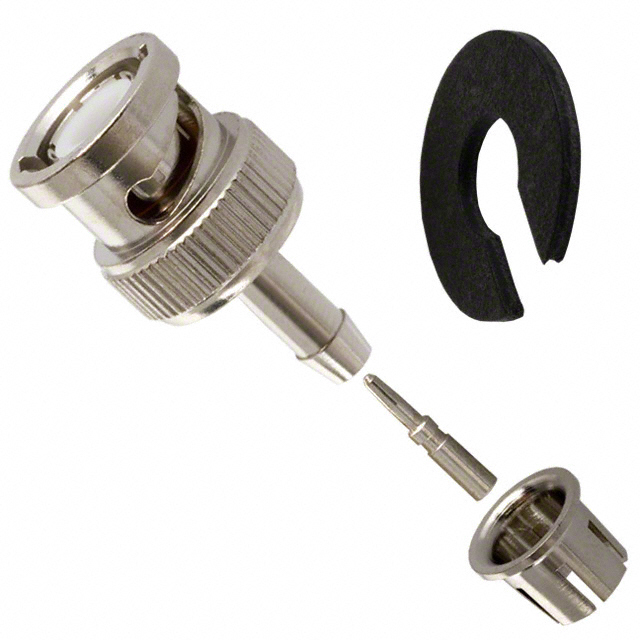

31-4700

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	31-4700

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Connector Style	Mating Cycles	Insertion Loss	Center Contact Material	Number of Ports	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Material	Connector Type	Cable Group	Includes	Frequency - Max [Max]	Voltage Rating	Housing Color	Fastening Type	Body Finish	Mounting Type	Impedance	Dielectric Material
Amphenol RF 31-4700	Crimp	BNC	500	0.2 dB	Brass	1	Silver	-65 ░C	165 °C	Crimp Solder	Brass	Male Pin Plug	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1 Connector 1 Contact 1 Ferrule	4 GHz	500 V	Silver	Bayonet Lock	Nickel	Free Hanging (In-Line)	50 Ohms	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
