21505.6

Active

Pflitsch

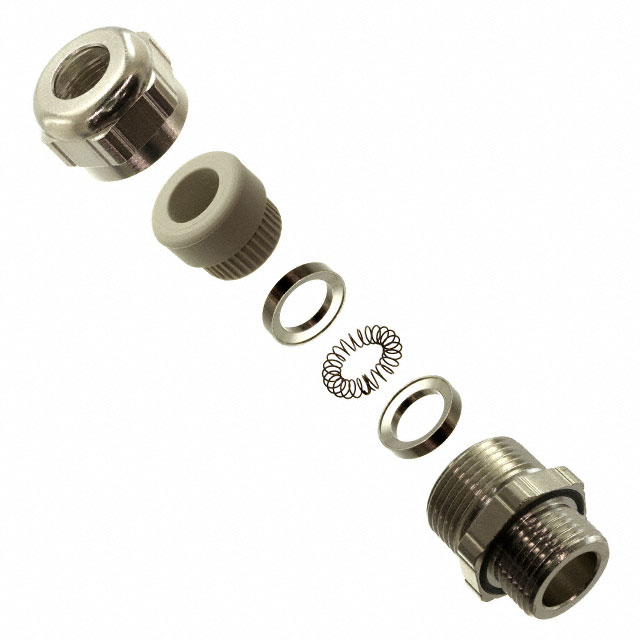

CABLE GLAND 7.87-10.92MM PG11

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 7.87-10.92MM PG11

Technical Specifications

Parameters and characteristics for this part

Specification	21505.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.43 in
Outside Cable Diameter (Max) [Max] [diameter]	10.92 mm
Outside Cable Diameter (Min) [Min]	0.31 in
Outside Cable Diameter (Min) [Min]	7.87 mm
Panel Hole Size	18.5 mm
Panel Hole Size	0.73 in
Thread Length	0.39 in
Thread Length	9.91 mm
Thread Size	PG11
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Panel Hole Size	Panel Hole Size	Color	Thread Length	Thread Length	Includes	Type	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Pflitsch 21505.6	0.43 in	10.92 mm	PG11	-40 °C	300 °C	IP68 - Dust Tight Waterproof; NEMA 4X	18.5 mm	0.73 in	Silver	0.39 in	9.91 mm	Sealing Ring	Cable Gland	Brass Nickel Plated	0.31 in	7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG11 Silver
