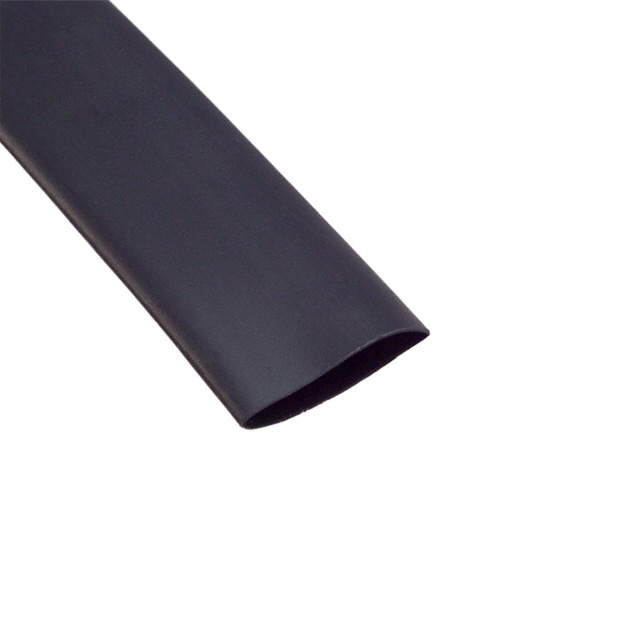

VPB-5/8-0-SP

Active

TE Connectivity Raychem Cable Protection

VPB-5/8-0-SP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Tyco Modified Fluoroelastomer Tubing Flexible, Abrasion Resistant, Heat-Shrinkable +2

VPB-5/8-0-SP

Active

TE Connectivity Raychem Cable Protection

VPB-5/8-0-SP

Deep-Dive with AI

DocumentsDatasheet Tyco Modified Fluoroelastomer Tubing Flexible, Abrasion Resistant, Heat-Shrinkable +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VPB-5/8-0-SP

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.315 in
Inner Diameter - Recovered [diameter]	8 mm
Inner Diameter - Supplied [diameter]	0.625 in
Inner Diameter - Supplied [diameter]	15.88 mm
Length	Enter Number of Feet in Order Quantity
Material	Fluoroelastomer (FKM)
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.07 mm
Recovered Wall Thickness	0.042 in
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Spool Size	61 m
Spool Size	200 '
Type	Tubing, Flexible

VPB Series

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Material	Features	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Spool Size	Spool Size
TE Connectivity Raychem Cable Protection VPB-3-0-SP-CS5444	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	1.65 mm	0.065 in	38.1 mm	1.5 in	Black	3 in	76.2 mm	2 to 1
TE Connectivity Raychem Cable Protection VPB-1-1/2-0-SP	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	1.4 mm	0.055 in	19.05 mm	0.75 "	Black	1.5 in	38.1 mm	2 to 1
TE Connectivity Raychem Cable Protection VPB-3/16-0SPCS5444	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	0.89 mm	0.035 in			Black	0.187 in	4.75 mm	2 to 1	2.36 mm	0.093 in
TE Connectivity Raychem Cable Protection VPB-2-0-SP	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	1.65 mm	0.065 in	25.4 mm	1 in	Black	2 in	50.8 mm	2 to 1
TE Connectivity Raychem Cable Protection VPB-5/8-0-SP	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	1.07 mm	0.042 in	8 mm	0.315 in	Black	0.625 in	15.88 mm	2 to 1			Enter Number of Feet in Order Quantity	61 m	200 '
TE Connectivity Raychem Cable Protection VPB-1/4-0SPCS5444	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	0.89 mm	0.035 in		0.125 in	Black	0.25 in	6.35 mm	2 to 1	3.18 mm
TE Connectivity Raychem Cable Protection VPB-1-0SPCS5444	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	1.24 mm	0.049 "	12.7 mm	0.5 in	Black	1 in	25.4 mm	2 to 1
TE Connectivity Raychem Cable Protection VPB-1-1/2-0-SP-CS7180	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	1.4 mm	0.055 in	19.05 mm	0.75 "	Black	1.5 in	38.1 mm	2 to 1
TE Connectivity Raychem Cable Protection VPB-1/2-0-SP	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	0.89 mm	0.035 in	6.35 mm	0.25 in	Black	0.5 in	12.7 mm	2 to 1
TE Connectivity Raychem Cable Protection VPB-3/8-0SPCS5444	Tubing Flexible	-55 °C	150 °C	100 °C	Fluoroelastomer (FKM)	Flame Retardant	0.89 mm	0.035 in	4.75 mm	0.187 in	Black	0.375 in	9.53 mm	2 to 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 25.69
		5	$ 23.80

Description

General part information

VPB Series

Heat Shrink Tubing, Black, 2:1, Single Wall, Shrinks To 7.94 mm [.313 in], Crosslinked Fluoroelastomer, 15.88 mm [.625 in] Expanded Inside

Documents

Technical documentation and resources

Datasheet

Tyco Modified Fluoroelastomer Tubing Flexible, Abrasion Resistant, Heat-Shrinkable

Product Specifications

Thermofit Viton Polymer Blend Molded Components Flame Resistant, Flexible, Heat-Shrinkable

Product Specifications

raychem-tubing-product-selection-guide

Datasheets & Catalog Pages
