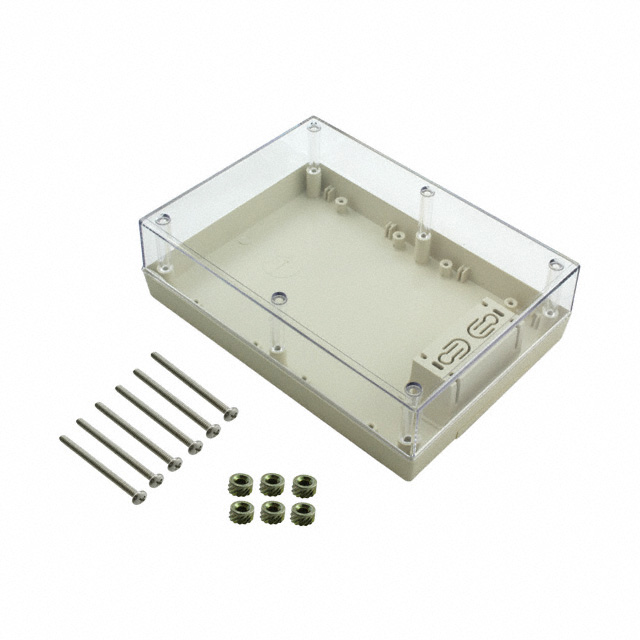

Specification	272RC,AL

Area (L x W)	33.6 in²
Color	Clear Cover/Door, Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, Battery Compartment, 9V, PCB Supports
Height	2 in
Material	Polycarbonate (PC), Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension Length	6.88 in
Size / Dimension Width	4.88 in
Thickness	0.1 in
Weight	0.441 lb

272R Series

Part	Weight	Area (L x W)	Thickness	Design	Material	Color	Material Flammability Rating	Ratings	Container Type	Height	Size / Dimension Width	Size / Dimension Length	Features
Serpac 272R,GY	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	ABS Plastic	Gray	UL94 HB	IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272R,BK	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	ABS Plastic	Black	UL94 HB	IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272RC,AL	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	Plastic Polycarbonate Polycarbonate (PC)	Almond Clear Cover/Door		IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272RC,GY	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	Plastic Polycarbonate Polycarbonate (PC)	Clear Cover/Door Gray		IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272R,AL	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	ABS Plastic	Almond	UL94 HB	IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272RC,BK	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	Plastic Polycarbonate Polycarbonate (PC)	Black Clear Cover/Door		IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272RI,BK	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	ABS Plastic	Black	UL94 HB	IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272RI,GY	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	ABS Plastic	Gray	UL94 HB	IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
Serpac 272RI,AL	0.441 lb	33.6 in²	0.1 in	Hand Held Split Sides	ABS Plastic	Almond	UL94 HB	IP40 NEMA 1	Box	2 in	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports
