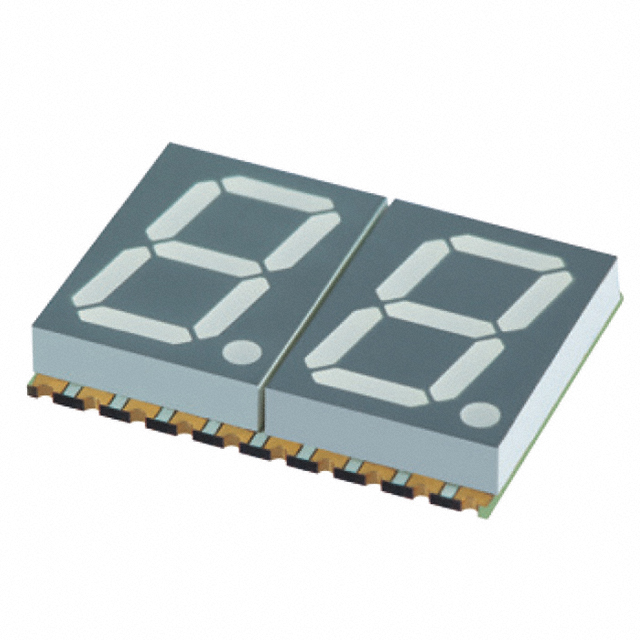

XZFDGK14A2

Active

SunLED

DISPLAY 7SEG 0.56" DBL GRN 20SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFDGK14A2

Active

SunLED

DISPLAY 7SEG 0.56" DBL GRN 20SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFDGK14A2

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	51 mcd
Number of Characters	2
Package / Case	20-SMD, No Lead
Power Dissipation (Max) [Max]	102.5 mW
Size / Dimension [x]	0.669 "
Size / Dimension [x]	17 mm
Size / Dimension [y]	0.988 "
Size / Dimension [y]	25.1 mm
Size / Dimension [z]	3.75 mm
Size / Dimension [z]	0.148 in
Voltage - Forward (Vf) (Typ)	3 V
Wavelength - Peak	515 nm

XZFDGK14 Series

Part	Wavelength - Peak	Display Type	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Characters [custom]	Color	Power Dissipation (Max) [Max]	Package / Case	Current - Test	Common Pin	Number of Characters
SunLED XZFDGK14A	515 nm	7-Segment	3 V	0.56 in	14.22 mm	51 mcd	0.148 "	19 mm	0.748 "	12.4 mm	3.75 mm	0.488 in	1	Green	102.5 mW	10-SMD No Lead	10 mA	Common Anode
SunLED XZFDGK14A2	515 nm	7-Segment	3 V	0.56 in	14.22 mm	51 mcd	0.669 "	3.75 mm	0.148 in	25.1 mm	17 mm	0.988 "		Green	102.5 mW	20-SMD No Lead	10 mA	Common Anode	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 4.01
		600	$ 3.38
		1000	$ 3.10
		2000	$ 2.97

Description

General part information

XZFDGK14 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 3V 10mA 0.669" H x 0.988" W x 0.148" D (17.00mm x 25.10mm x 3.75mm) 20-SMD, No Lead
