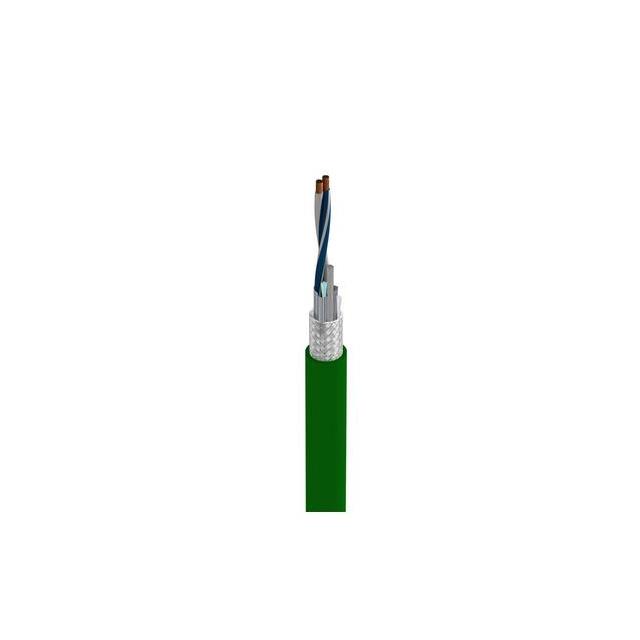

7200A X4P500

Active

Belden Inc.

CABLE 2CON 24AWG GREEN SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 24AWG GREEN SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	7200A X4P500

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	40
Features	Oil Resistant, Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Green
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Shield Material	Wire Gauge	Voltage	Cable Type	Shield Coverage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Features
Belden Inc. 7200A X4P500	Poly-Vinyl Chloride (PVC)	Copper Bare	2	Aluminum Copper Tinned	24 AWG	300 V	Multi-Conductor	85 % 100 %	500 '	152.4 m	-20 C	60 °C	Foam Polyethylene (FPE)	1.143 mm	0.045 in	Braid Foil	41 strands	40	Green	Drain Wire Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.81

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Green 24 AWG Foil, Braid 500.0' (152.4m)
