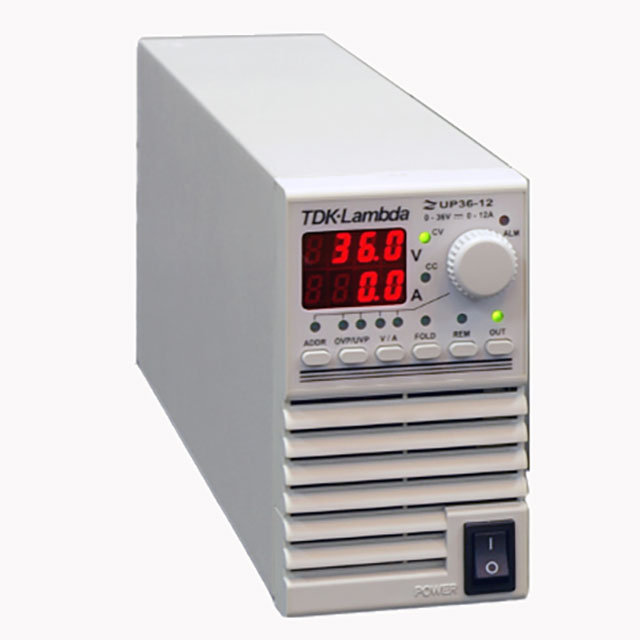

ZUP36-6

Obsolete

TDK-LAMBDA

PWR SUP BENCH PROG 0-36V 216W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGeneral Safety Inst ZUP

ZUP36-6

Obsolete

TDK-LAMBDA

PWR SUP BENCH PROG 0-36V 216W

Deep-Dive with AI

DocumentsGeneral Safety Inst ZUP

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZUP36-6	ZUP36 Series

Accuracy - Voltmeter; Ammeter	0.02% + 20mV	0.02% + 20mV
Current - Output [Max]	6 A	6 - 24 A
Current - Output [Min]	0 A	0 A
Current Regulation - Line	2 mA	2 mA
Current Regulation - Line	0.01 %	0.01 - 5 mA
Current Regulation - Load	0.01 %, 5 mA	0.01 - 10 mA
Display Type	Digital	Digital
Features	Memory, RS232 and RS485 Interface, Programmable	Memory, RS232 and RS485 Interface, Programmable
Number of Characters	3	3
Number of Outputs	1	1
Power (Watts)	200 W	200 - 800 W
Ripple	5 mV	5 mV
Size / Dimension [x]	13.78 in	13.78 in
Size / Dimension [x]	350 mm	350 mm
Size / Dimension [y]	124 mm	124 - 140 mm
Size / Dimension [y]	4.882 in	4.882 - 5.512 in
Size / Dimension [z]	70 mm	70 - 124 mm
Size / Dimension [z]	2.756 in	2.756 - 4.882 in
Type	Bench (AC to DC)	Bench (AC to DC)
Voltage - Output [Max]	36 V	36 V
Voltage - Output [Min]	0 VDC	0 VDC
Voltage - Supply [Max]	265 VAC	265 VAC
Voltage - Supply [Min]	85 VAC	85 VAC
Voltage Regulation - Line	1 mV, 0.005 %	0.005 - 1 mV
Voltage Regulation - Load	2 mV	2 mV
Weight	6.4 lbs	6.4 - 13 lbs
Weight	2.9 kg	2.9 - 5.9 kg

ZUP36 Series

PWR SUP BENCH PROG 0-36V 864W

Part	Current Regulation - Load	Number of Characters	Power (Watts)	Weight	Weight	Voltage - Output [Max]	Display Type	Features	Voltage Regulation - Line	Type	Number of Outputs	Voltage Regulation - Load	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Ripple	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output [Max]	Accuracy - Voltmeter; Ammeter	Current Regulation - Line	Current Regulation - Line
TDK-LAMBDA ZUP36-24	0.07 %, 10 mA	3	800 W	13 lbs	5.9 kg	36 V	Digital	Memory, Programmable, RS232 and RS485 Interface	0.005 %, 1 mV	Bench (AC to DC)	1	2 mV	4.882 in	13.78 in	350 mm	5.512 in	124 mm	140 mm	5 mV	265 VAC	85 VAC	24 A	0.02% + 20mV	0.01 %, 5 mA
TDK-LAMBDA ZUP36-12/U	0.01 %, 5 mA	3		7.1 lbs	3.2 kg	36 V	Digital	Memory, Programmable, RS232 and RS485 Interface	0.005 %, 1 mV	Bench (AC to DC)	1	2 mV	2.756 in	13.78 in	350 mm	4.882 in	70 mm	124 mm	5 mV	265 VAC	85 VAC	12 A	0.02% + 20mV	0.01 %	2 mA
TDK-LAMBDA ZUP36-6/LU	0.01 %, 5 mA	3	200 W	6.4 lbs	2.9 kg	36 V	Digital	Memory, Programmable, RS232 and RS485 Interface	0.005 %, 1 mV	Bench (AC to DC)	1	2 mV	2.756 in	13.78 in	350 mm	4.882 in	70 mm	124 mm	5 mV	265 VAC	85 VAC	6 A	0.02% + 20mV	0.01 %	2 mA
TDK-LAMBDA ZUP36-6	0.01 %, 5 mA	3	200 W	6.4 lbs	2.9 kg	36 V	Digital	Memory, Programmable, RS232 and RS485 Interface	0.005 %, 1 mV	Bench (AC to DC)	1	2 mV	2.756 in	13.78 in	350 mm	4.882 in	70 mm	124 mm	5 mV	265 VAC	85 VAC	6 A	0.02% + 20mV	0.01 %	2 mA
TDK-LAMBDA ZUP36-24/U	0.07 %, 10 mA	3	800 W	13 lbs	5.9 kg	36 V	Digital	Memory, Programmable, RS232 and RS485 Interface	0.005 %, 1 mV	Bench (AC to DC)	1	2 mV	4.882 in	13.78 in	350 mm	5.512 in	124 mm	140 mm	5 mV	265 VAC	85 VAC	24 A	0.02% + 20mV	0.01 %, 5 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZUP36 Series

0 ~ 36VDC Output Bench (AC to DC) Power Supply Digital 0 ~ 6A Output 200W Features Memory, Programmable, RS232 and RS485 Interface

Documents

Technical documentation and resources

General Safety Inst

Datasheet

ZUP

Datasheet
