26131-910-01

Active

Orion Fans

CORD 16AWG 5-15P - 320-C13 9.84'

Search across all available documentation for this part.

Active

Orion Fans

CORD 16AWG 5-15P - 320-C13 9.84'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	26131-910-01	26131 Series

1st Connector	NEMA 5-15P	NEMA 5-15P
Approval Agency Marking	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA
Approved Countries	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe
Color	Black	Black
Cord Type	SJT	SJT
Current Rating (Amps)	13 A	13 A
Length	-	6.58 ft
Length	-	2.01 m
Length [x]	9.84 ft	9.84 ft
Length [x]	3 m	3 m
Number of Conductors	3	3
Operating Temperature	60 °C	60 °C
Shielding	Unshielded	Unshielded
Style	Male Pins, Female Sockets	Male Pins, Female Sockets
Voltage Rating	125 VAC	125 VAC
Wire Gauge	16 AWG	16 AWG

CORD 16AWG 5-15P - 320-C13 9.84'

Part	Approved Countries	Voltage Rating	Cord Type	Length [x]	Length [x]	Shielding	Wire Gauge	Operating Temperature	Style	Approval Agency Marking	Number of Conductors	1st Connector	Current Rating (Amps)	Color	Length	Length
Orion Fans 26131-910-01	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	125 VAC	SJT	9.84 ft	3 m	Unshielded	16 AWG	60 °C	Female Sockets, Male Pins	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	3	NEMA 5-15P	13 A	Black
Orion Fans 26131-67-01	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	125 VAC	SJT			Unshielded	16 AWG	60 °C	Female Sockets, Male Pins	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	3	NEMA 5-15P	13 A	Black	6.58 ft	2.01 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

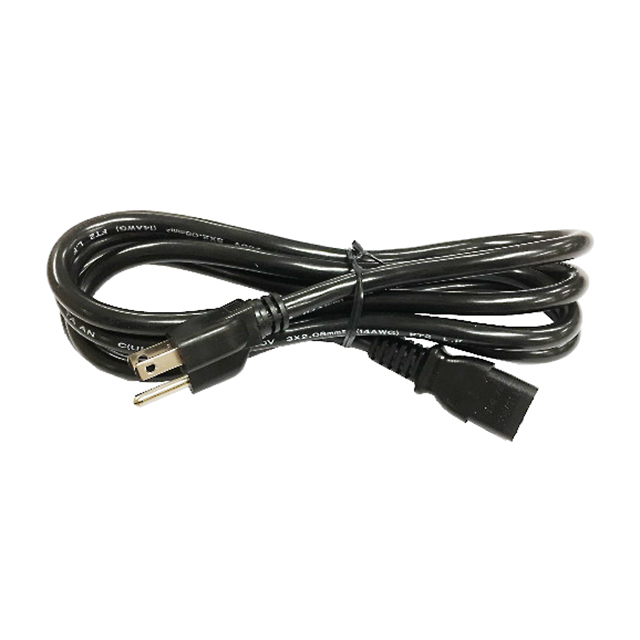

9.84' (3.00m) Power Cord Black NEMA 5-15P To IEC 320-C13 SJT

Technical documentation and resources
