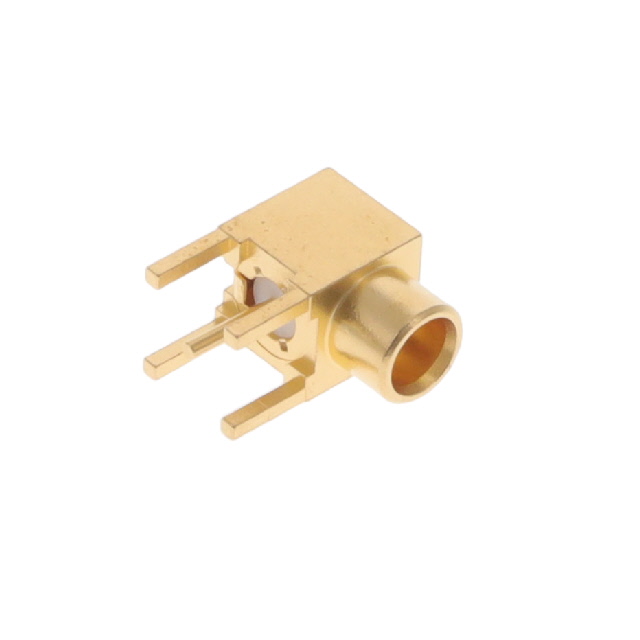

Specification	R213665000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Gold
Impedance	75 Ohm
Mating Cycles	500 cycles
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

R21366 Series

Part	Mating Cycles	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Dielectric Material	Body Finish	Voltage Rating	Body Material	Mounting Type	Housing Color	Fastening Type	Center Contact Material	Impedance	Connector Type	Shield Termination	Contact Termination	Frequency - Max	Connector Style	Number of Ports
Radiall USA, Inc. R213665000	500 cycles	155 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold	335 V	Brass	Right Angle Through Hole	Gold	Snap-On	Beryllium Copper	75 Ohm	Female Socket Jack	Solder	Solder	6000 MHz	MCX	1
Radiall USA, Inc. R213664800	500 cycles	155 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold	335 V	Brass	Right Angle Surface Mount	Gold	Snap-On	Beryllium Copper	75 Ohm	Female Socket Recepture	Solder	Solder	6000 MHz	MCX	1
Radiall USA, Inc. R213664800W	500 cycles	155 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold	335 V	Brass	Right Angle Surface Mount	Gold	Snap-On	Beryllium Copper	75 Ohm	Female Socket Recepture	Solder	Solder	6000 MHz	MCX	1
Radiall USA, Inc. R213665000W	500 cycles	155 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold	335 V	Brass	Right Angle Through Hole	Gold	Snap-On	Beryllium Copper	75 Ohm	Female Socket Jack	Solder	Solder	6000 MHz	MCX	1
