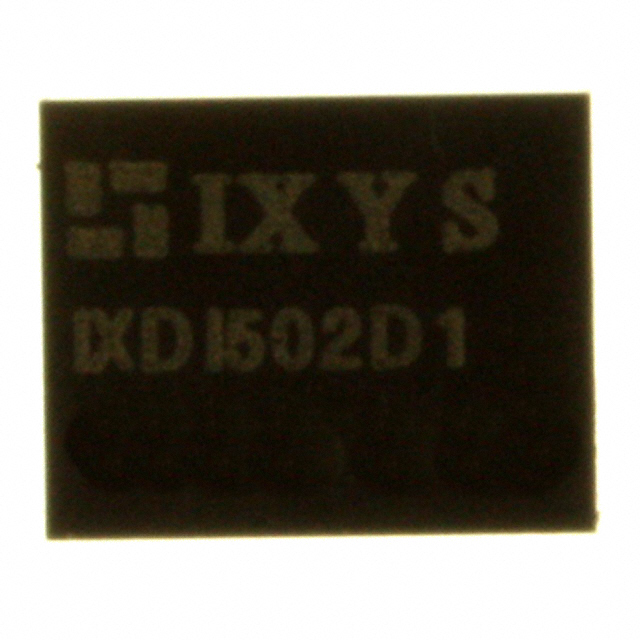

IXDI502D1T/R

Obsolete

IXYS

IC GATE DRVR LOW-SIDE 6DFN

Search across all available documentation for this part.

Obsolete

IXYS

IC GATE DRVR LOW-SIDE 6DFN

Technical Specifications

Parameters and characteristics for this part

Specification	IXDI502D1T/R

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	2 A
Current - Peak Output (Source, Sink) [custom]	2 A
Driven Configuration	Low-Side
Input Type	Inverting
Logic Voltage - VIL, VIH	0.8 V, 3 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-VDFN Exposed Pad
Rise / Fall Time (Typ) [custom]	7.5 ns
Rise / Fall Time (Typ) [custom]	6.5 ns
Supplier Device Package	6-DFN (4x5)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	4.5 V

Part	Logic Voltage - VIL, VIH	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Drivers	Package / Case	Supplier Device Package	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Driven Configuration	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Channel Type	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
IXYS IXDI502D1T/R	0.8 V 3 V	7.5 ns	6.5 ns	Inverting	-55 °C	150 °C	2	6-VDFN Exposed Pad	6-DFN (4x5)	2 A	2 A	Low-Side	Surface Mount	4.5 V	30 VDC	Independent
IXYS IXDI502SIA	0.8 V 3 V	7.5 ns	6.5 ns	Inverting	-55 °C	150 °C	2	8-SOIC	8-SOIC	2 A	2 A	Low-Side	Surface Mount	4.5 V	30 VDC	Independent	3.9 mm	0.154 in
IXYS IXDI502PI	0.8 V 3 V	7.5 ns	6.5 ns	Inverting	-55 °C	150 °C	2	8-DIP	8-DIP	2 A	2 A	Low-Side	Through Hole	4.5 V	30 VDC	Independent			0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Low-Side Gate Driver IC Inverting 6-DFN (4x5)
