96191.6

Active

Pflitsch

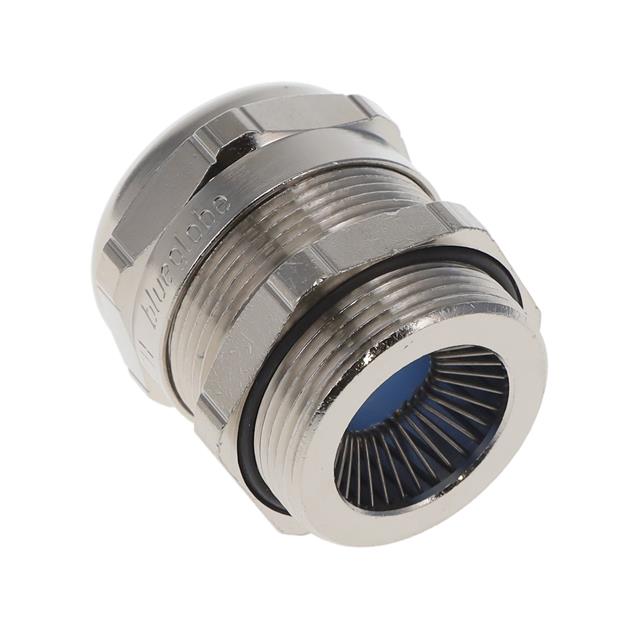

CABLE GLAND 16-20.07MM M25 BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 16-20.07MM M25 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	96191.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.79 in
Outside Cable Diameter (Max) [Max] [diameter]	20.07 mm
Outside Cable Diameter (Min) [Min]	0.63 in
Outside Cable Diameter (Min) [Min]	16 mm
Panel Hole Size	24.9 mm
Panel Hole Size	0.98 in
Thread Length	0.3 in
Thread Length	7.62 mm
Thread Size	M25x1.5
Type	Cable Gland

Part	Thread Size	Material	Thread Length	Thread Length	Type	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Panel Hole Size	Panel Hole Size	Operating Temperature [Min]	Operating Temperature [Max]
Pflitsch 96191.6	M25x1.5	Brass Nickel Plated	0.3 in	7.62 mm	Cable Gland	Sealing Ring	0.79 in	20.07 mm	Silver	0.63 in	16 mm	IP68 IP69K	24.9 mm	0.98 in	-40 °C	300 °C
Pflitsch 96191.6/15	M25x1.5	Brass Nickel Plated			Cable Gland
