6-786862-5
ActiveTE Connectivity AMP Connectors

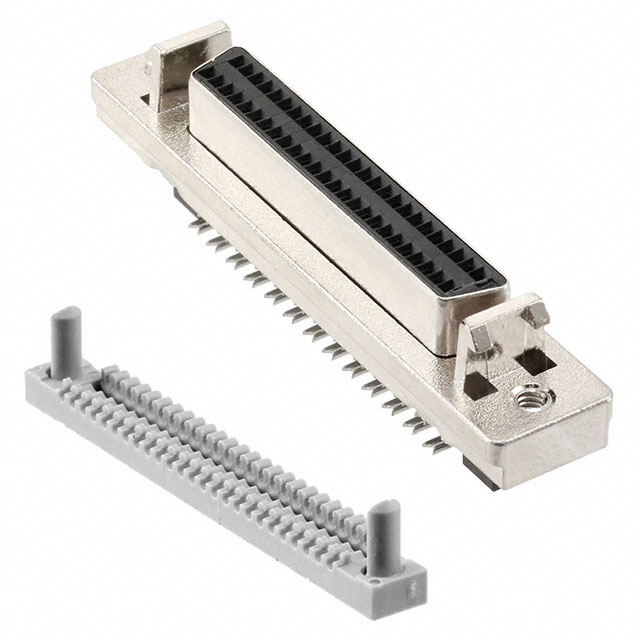

CONN D-TYPE RCPT 50P PNL MNT IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-786862-5
ActiveTE Connectivity AMP Connectors
CONN D-TYPE RCPT 50P PNL MNT IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-786862-5 | 786862 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | D-Type | D-Type |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | Flash | Flash |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Dielectric Material | Polyester | Polyester |
| Features | Feed Through, Terminating Cover | Feed Through, Terminating Cover |
| Flange Feature | Housing/Shell (2-56), Latchblocks | Housing/Shell (2-56), Latchblocks |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 50 | 50 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel | Nickel Plated, Steel |
| Shell Size, Connector Layout [x] | 0.05 | 0.05 |
| Shell Size, Connector Layout [y] | 0.1 | 0.1 |
| Termination | IDC, Ribbon Cable | IDC, Ribbon Cable |
| Voltage Rating | 30 VDC | 30 VDC |
786862 Series
CONN D-TYPE RCPT 50P PNL MNT IDC
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Positions | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [y] | Material Flammability Rating | Number of Rows | Connector Style | Shell Material, Finish | Contact Type | Contact Material | Contact Finish Thickness | Termination | Color | Contact Finish | Flange Feature | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-786862-5 | Polyester | 105 ░C | -55 °C | 30 VDC | 50 | 0.05 | 0.1 | UL94 V-0 | 2 | D-Type | Nickel Plated, Steel | Signal | Phosphor Bronze | Flash | IDC, Ribbon Cable | Black | Gold | Housing/Shell (2-56), Latchblocks | Feed Through, Terminating Cover | Receptacle, Female Sockets |
TE Connectivity AMP Connectors 6-786862-5 | Polyester | 105 ░C | -55 °C | 30 VDC | 50 | 0.05 | 0.1 | UL94 V-0 | 2 | D-Type | Nickel Plated, Steel | Signal | Phosphor Bronze | Flash | IDC, Ribbon Cable | Black | Gold | Housing/Shell (2-56), Latchblocks | Feed Through, Terminating Cover | Receptacle, Female Sockets |
TE Connectivity AMP Connectors 1-786862-5 | Polyester | 105 ░C | -55 °C | 30 VDC | 50 | 0.05 | 0.1 | UL94 V-0 | 2 | D-Type | Nickel Plated, Steel | Signal | Phosphor Bronze | Flash | IDC, Ribbon Cable | Black | Gold | Housing/Shell (2-56), Latchblocks | Feed Through, Terminating Cover | Receptacle, Female Sockets |
TE Connectivity AMP Connectors 786862-5 | Polyester | 105 ░C | -55 °C | 30 VDC | 50 | 0.05 | 0.1 | UL94 V-0 | 2 | D-Type | Nickel Plated, Steel | Signal | Phosphor Bronze | Flash | IDC, Ribbon Cable | Black | Gold | Housing/Shell (2-56), Latchblocks | Feed Through, Terminating Cover | Receptacle, Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 320 | $ 19.11 | |
Description
General part information
786862 Series
50 Position D-Type Receptacle, Female Sockets Connector
