5-786862-5

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50P PNL MNT IDC

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50P PNL MNT IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	360	$ 19.11

General part information

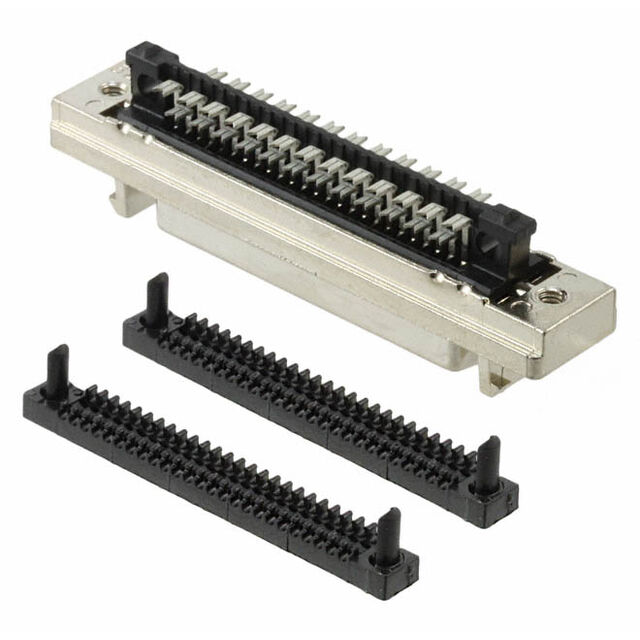

50 Position D-Type Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	5-786862-5	786862 Series

Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Polyester	Polyester
Features	Feed Through, Terminating Cover	Feed Through, Terminating Cover
Flange Feature	Housing/Shell (2-56), Latchblocks	Housing/Shell (2-56), Latchblocks
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	50	50
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	IDC, Ribbon Cable	IDC, Ribbon Cable
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 50P PNL MNT IDC

Part	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Material Flammability Rating	Number of Rows	Connector Style	Shell Material, Finish	Contact Type	Contact Material	Contact Finish Thickness	Termination	Color	Contact Finish	Flange Feature	Features	Connector Type
TE Connectivity AMP Connectors 5-786862-5	Polyester	105 ░C	-55 °C	30 VDC	50	0.05	0.1	UL94 V-0	2	D-Type	Nickel Plated, Steel	Signal	Phosphor Bronze	Flash	IDC, Ribbon Cable	Black	Gold	Housing/Shell (2-56), Latchblocks	Feed Through, Terminating Cover	Receptacle, Female Sockets
TE Connectivity AMP Connectors 6-786862-5	Polyester	105 ░C	-55 °C	30 VDC	50	0.05	0.1	UL94 V-0	2	D-Type	Nickel Plated, Steel	Signal	Phosphor Bronze	Flash	IDC, Ribbon Cable	Black	Gold	Housing/Shell (2-56), Latchblocks	Feed Through, Terminating Cover	Receptacle, Female Sockets
TE Connectivity AMP Connectors 1-786862-5	Polyester	105 ░C	-55 °C	30 VDC	50	0.05	0.1	UL94 V-0	2	D-Type	Nickel Plated, Steel	Signal	Phosphor Bronze	Flash	IDC, Ribbon Cable	Black	Gold	Housing/Shell (2-56), Latchblocks	Feed Through, Terminating Cover	Receptacle, Female Sockets
TE Connectivity AMP Connectors 786862-5	Polyester	105 ░C	-55 °C	30 VDC	50	0.05	0.1	UL94 V-0	2	D-Type	Nickel Plated, Steel	Signal	Phosphor Bronze	Flash	IDC, Ribbon Cable	Black	Gold	Housing/Shell (2-56), Latchblocks	Feed Through, Terminating Cover	Receptacle, Female Sockets
