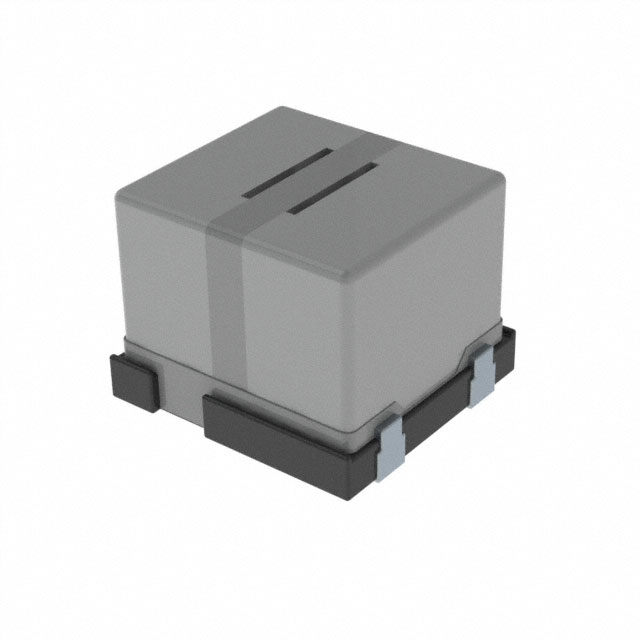

1155EA-0001=P3

Obsolete

Murata Electronics

FIXED IND 10UH 3A 25 MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Electronics

FIXED IND 10UH 3A 25 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

FIXED IND 10UH 3A 25 MOHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Mounting Type	Material - Core	DC Resistance (DCR)	Ratings	Current Rating (Amps)	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Type
Murata Electronics 1155EA-0001=P3	0.413 in	10.5 mm	10 µH	Surface Mount	Ferrite	25 mOhm	AEC-Q200	3 A	100 MHz	0.563 in	13.3 mm	14.3 mm	0.524 "	7.2 A	Unshielded	125 °C	-40 °C	Nonstandard	20 %	Drum Core, Wirewound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 µH Unshielded Drum Core, Wirewound Inductor 3 A 25mOhm Max Nonstandard

Technical documentation and resources

No documents available
