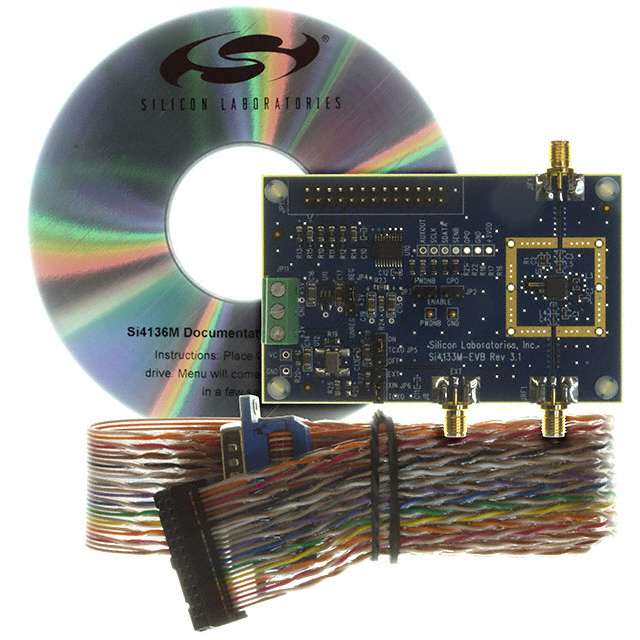

SI4136M-EVB

Active

Skyworks Solutions Inc.

BOARD EVALUATION FOR SI4136

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

BOARD EVALUATION FOR SI4136

Technical Specifications

Parameters and characteristics for this part

Specification	SI4136M-EVB

For Use With/Related Products	SI4136
Supplied Contents	Board(s)
Type	Synthesizer

Part	Supplied Contents	For Use With/Related Products	Type	Input	Divider/Multiplier	Mounting Type	Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Ratio - Input:Output [custom]	Supplier Device Package	Number of Circuits	Frequency - Max [Max]
Skyworks Solutions Inc. SI4136M-EVB	Board(s)	SI4136	Synthesizer
Skyworks Solutions Inc. SI4136-BM			Frequency Synthesizer	Crystal	Yes/No	Surface Mount	Clock	85 °C	-40 °C	2.7 V	3.6 V	28-VFQFN Exposed Pad	1:2	28-QFN (5x5)	1	2.5 GHz
Skyworks Solutions Inc. SI4136-F-GMR			Frequency Synthesizer	Crystal	Yes/No	Surface Mount	Clock	85 °C	-40 °C	2.7 V	3.6 V	28-VFQFN Exposed Pad	1:3	28-QFN (5x5)	1	2.5 GHz
Skyworks Solutions Inc. SI4136-F-GM			Frequency Synthesizer	Crystal	Yes/No	Surface Mount	Clock	85 °C	-40 °C	2.7 V	3.6 V	28-VFQFN Exposed Pad	1:3	28-QFN (5x5)	1	2.5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 220.94

General part information

SI4136 - Synthesizer Evaluation Board
