TERM TURRET PIN L=5.61MM SILVER
2318-3-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET PIN L=5.61MM SILVER
Description
General part information
2318-3 Series

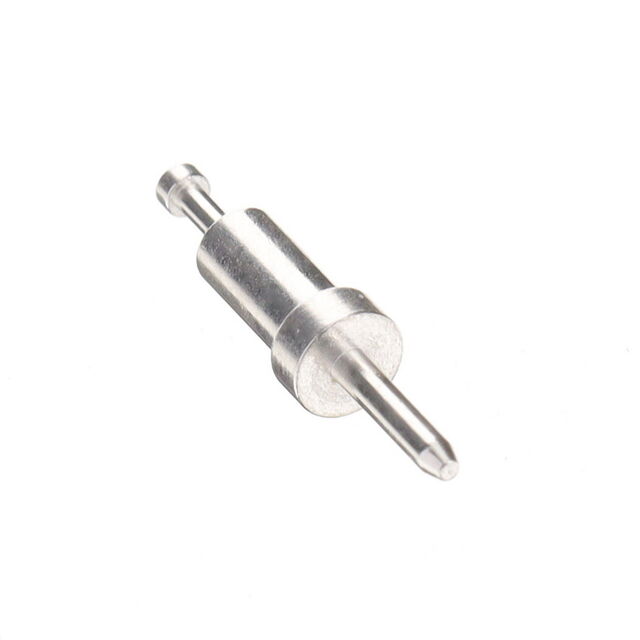

Terminal Turret Connector Double End, Pin 0.221" (5.61mm) Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | 2318-3-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.094 in |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.033 in |
| Flange Diameter | 0.078 in |
| Insulation | Non-Insulated |
| Length - Above Board | 0.221 in |
| Length - Below Flange | 0.125 in |
| Length - Overall | 0.346 in |
| Mounting Hole Diameter | 0.062 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Terminal Type | Double End, Pin |
| Termination | Swage |
