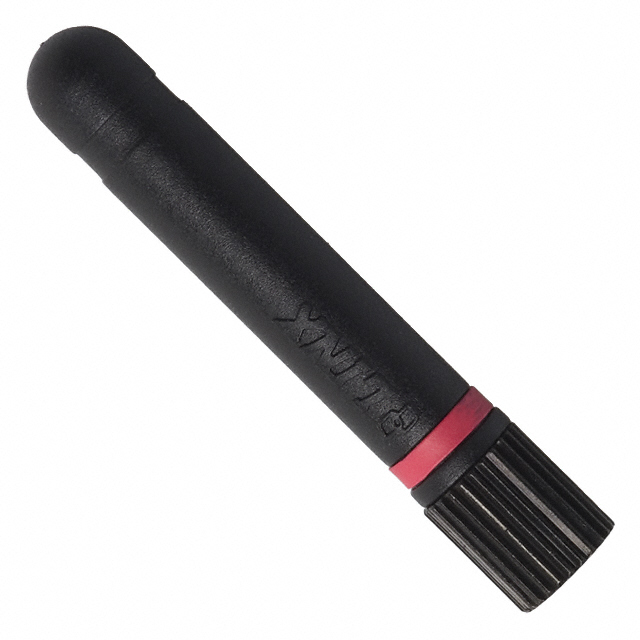

ANT-433-CW-RH

Active

TE Connectivity Linx

RF ANT 433MHZ WHIP STR RP-SMA ML

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-433-CW-RH

Active

TE Connectivity Linx

RF ANT 433MHZ WHIP STR RP-SMA ML

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-433-CW-RH

Antenna Type	Whip, Straight
Applications	ISM, Alarms, Security Systems, Remote Control
Frequency (Center/Band)	433 MHz
Frequency Group [Max]	1 GHz
Frequency Group [Min]	300 MHz
Frequency Range [Max]	440 MHz
Frequency Range [Min]	425 MHz
Gain	-5.6 dBi
Height (Max)	51 mm
Height (Max) [Max]	2.008 in
Mounting Type	Connector Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination	RP-SMA Male
VSWR	1.9

ANT-433 Series

Part	Antenna Type	RF Family/Standard	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Gain	Frequency Group [Max]	Frequency Group [Min]	VSWR	Height (Max) [Max]	Height (Max)	Termination	Number of Bands	Applications	Features	Features	Mounting Type	Height (Max) [Max]	Height (Max)	Height (Max) [Max] [z]
TE Connectivity Linx ANT-433-PW-LP	Whip Straight	General ISM	433 MHz	439 MHz	427 MHz	-1.9 dBi	1 GHz	300 MHz	1.9	1.988 in	50.5 mm	Screw-Mount	1	Alarms ISM Remote Control Security Systems
TE Connectivity Linx ANT-433-WRT-SMA	Dome	General ISM	400 MHz 410 MHz	441 MHz	425 MHz	-9 dBi	1 GHz	300 MHz	1.9	1.063 in	27 mm		1	Alarms ISM Remote Control Security Systems	Cable	216 mm
TE Connectivity Linx ANT-433-HETH	Helical	General ISM	433 MHz	458 MHz	418 MHz	1.9 dBi	1 GHz	300 MHz	2	0.35 in	8.89 mm	Solder	1	Alarms ISM Remote Control Security Systems			Through Hole
TE Connectivity Linx ANT-433-MHW-SMA-S	Whip Center-Fed Double	General ISM	433 MHz	453 MHz	413 MHz	1.2 dBi	1 GHz	300 MHz	1.9	5.709 in			1	Alarms ISM Remote Control Security Systems	Cable - 2m		Adhesive	145 mm
TE Connectivity Linx ANT-433-CW-HWR-RPS	Tilt Whip	General ISM	433 MHz	448 MHz	418 MHz	1.1 dBi	1 GHz	300 MHz	2	5.591 in		RP-SMA Male	1	Alarms ISM Remote Control Security Systems			Connector Mount	142 mm
TE Connectivity Linx ANT-433-CW-HD	Whip Straight	General ISM	433 MHz	445 MHz	420 MHz	0.7 dBi	1 GHz	300 MHz	2		88 mm	RP-SMA Male	1	Alarms ISM Remote Control Security Systems			Connector Mount		3.465 in
TE Connectivity Linx ANT-433-USP-T	Chip	General ISM	433 MHz	437 MHz	429 MHz	-9.8 dBi	1 GHz	300 MHz	2	0.103 in		Solder	1	Alarms ISM Remote Control Security Systems			Surface Mount	2.62 mm
TE Connectivity Linx ANT-433-CW-RH	Whip Straight	General ISM	433 MHz	440 MHz	425 MHz	-5.6 dBi	1 GHz	300 MHz	1.9	2.008 in	51 mm	RP-SMA Male	1	Alarms ISM Remote Control Security Systems			Connector Mount
TE Connectivity Linx ANT-433-CW-RCS		General ISM	433 MHz	440 MHz	425 MHz	-2.9 dBi	1 GHz	300 MHz	2			RP-SMA Male	1	Alarms ISM Remote Control Security Systems			Connector Mount	53.5 mm		2.106 in
TE Connectivity Linx ANT-433-PW-RA	Tilt Whip	General ISM	433 MHz	443 MHz	413 MHz	-1 dBi	1 GHz	300 MHz	2	5.18 in	131.57 mm	Screw-Mount	1	Alarms ISM Remote Control Security Systems

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.39

Description

General part information

ANT-433 Series

RF ANTENNA Alarms, ISM, Remote Control, Security Systems Whip, Straight RP-SMA Male Connector Mount
