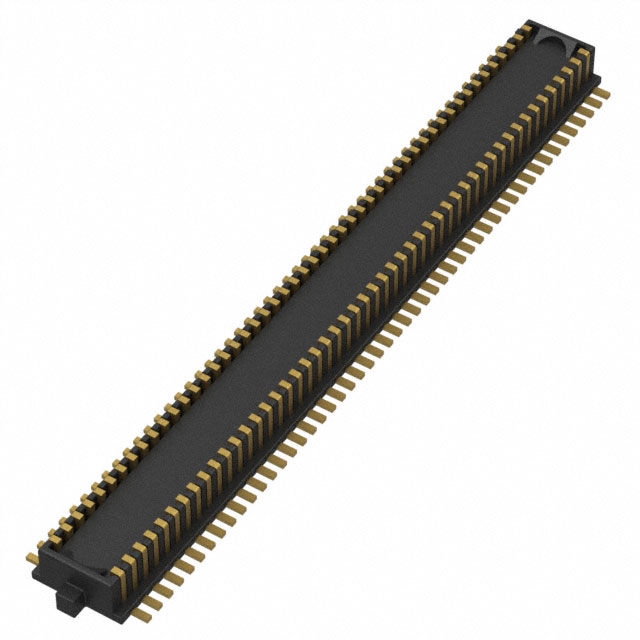

AC01P100WA1R500
ActiveJAE Electronics
CONN PLUG 100POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC01P100WA1R500
ActiveJAE Electronics
CONN PLUG 100POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC01P100WA1R500 |
|---|---|
| Contact Finish | Gold |
| Mated Stacking Heights [z] | 3 mm, 2.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.59 | |
| 10 | $ 7.73 | |||
| 25 | $ 7.29 | |||
| 50 | $ 7.10 | |||
| 100 | $ 6.91 | |||
| 250 | $ 6.17 | |||
| Digi-Reel® | 1 | $ 8.59 | ||
| 10 | $ 7.73 | |||
| 25 | $ 7.29 | |||
| 50 | $ 7.10 | |||
| 100 | $ 6.91 | |||
| 250 | $ 6.17 | |||
| Tape & Reel (TR) | 500 | $ 5.79 | ||
| 1000 | $ 5.12 | |||
| 1500 | $ 4.97 | |||
Description
General part information
AC01P100 Series
100 Position Connector Plug, Center Strip Contacts Surface Mount Gold
