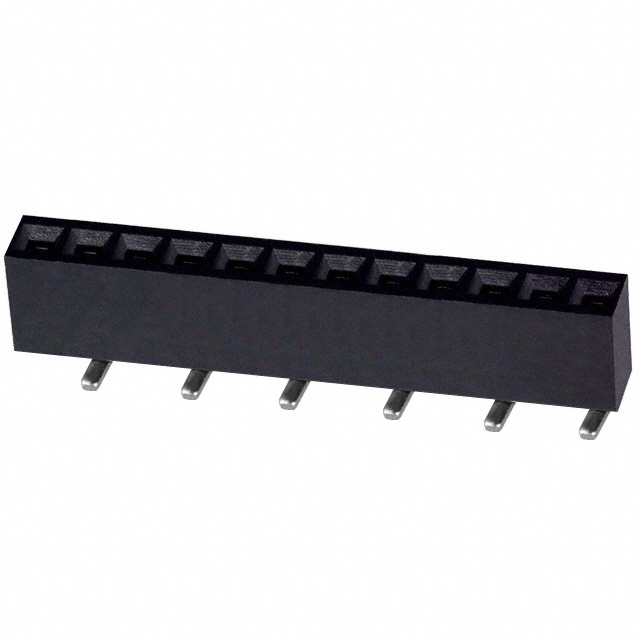

NPTC121KFXC-RC
ActiveSullins Connector Solutions
BOARD CONNECTOR, 12 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPTC121KFXC-RC
ActiveSullins Connector Solutions
BOARD CONNECTOR, 12 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NPTC121KFXC-RC |
|---|---|
| Connector Type | Header, Top or Bottom Entry |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.28 in |
| Insulation Height | 7.1 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.12 | |
| 20 | $ 0.97 | |||
| 100 | $ 0.87 | |||
| 500 | $ 0.73 | |||
Description
General part information
NPTC121 Series
12 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin
