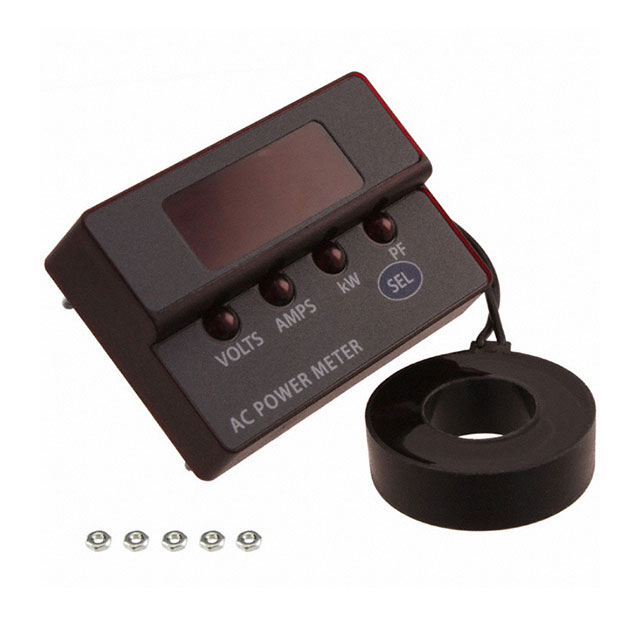

ACM20-5-AC1-G-F-C

Active

Murata Power Solutions Inc.

MULTI METER 0-32A LED PANEL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACM20-5-AC1-G-F-C

Active

Murata Power Solutions Inc.

MULTI METER 0-32A LED PANEL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACM20-5-AC1-G-F-C	ACM20-5 Series

	-	-
Display Characters - Height [z]	9.14 mm	9.14 mm
Display Characters - Height [z]	0.36 in	0.36 in
Display Type	LED - Green Characters	LED - Red Characters, LED - Green Characters
Features	Built In Current Transformer (Primary)	Built In Current Transformer (Primary)
Measuring Range [Max]	32 A	32 A
Measuring Range [Min]	0 A	0 A
Measuring Type	Frequency, Current, Wattage, Voltage	Wattage, Voltage, Current, Frequency
Mounting Type	Panel Mount - Surface	Panel Mount - Surface
Number of Characters Per Row	4	4
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Termination Style	Screw Terminal	Screw Terminal
Type	Energy Monitor	Energy Monitor
Voltage - Supply [Max]	264 VAC	264 VAC
Voltage - Supply [Min]	85 VAC	85 VAC
Weight	0.084 lb	0.084 - 0.096 lb
Weight	38.1 g	38.1 - 43.54 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 65.31

ACM20-5 Series

DIGITAL PANEL METER, LED, 4 DIGITS, FOUR FUNCTION, CURRENT, VOLTAGE, POWER, FREQUENCY,

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Weight	Weight	Number of Characters Per Row	Measuring Range [Min]	Measuring Range [Max]	Mounting Type	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Display Type
Murata Power Solutions Inc. ACM20-5-AC1-R-C	60 °C	0 °C	Screw Terminal	Built In Current Transformer (Primary)	85 VAC	264 VAC	Energy Monitor	0.084 lb	38.1 g	4	0 A	32 A	Panel Mount - Surface	9.14 mm	0.36 in	Current, Voltage, Wattage	LED - Red Characters
Murata Power Solutions Inc. ACM20-5-AC1-B-C	60 °C	0 °C	Screw Terminal	Built In Current Transformer (Primary)	85 VAC	264 VAC	Energy Monitor	0.096 lb	43.54 g	4	0 A	32 A	Panel Mount - Surface	9.14 mm	0.36 in	Current, Voltage, Wattage
Murata Power Solutions Inc. ACM20-5-AC1-G-C	60 °C	0 °C	Screw Terminal	Built In Current Transformer (Primary)	85 VAC	264 VAC	Energy Monitor	0.096 lb	43.54 g	4	0 A	32 A	Panel Mount - Surface	9.14 mm	0.36 in	Current, Voltage, Wattage	LED - Green Characters
Murata Power Solutions Inc. ACM20-5-AC1-G-F-C	60 °C	0 °C	Screw Terminal	Built In Current Transformer (Primary)	85 VAC	264 VAC	Energy Monitor	0.084 lb	38.1 g	4	0 A	32 A	Panel Mount - Surface	9.14 mm	0.36 in	Current, Frequency, Voltage, Wattage	LED - Green Characters
Murata Power Solutions Inc. ACM20-5-AC1-R-F-C
Murata Power Solutions Inc. ACM20-5-AC1-R-F-C	60 °C	0 °C	Screw Terminal	Built In Current Transformer (Primary)	85 VAC	264 VAC	Energy Monitor	0.084 lb	38.1 g	4	0 A	32 A	Panel Mount - Surface	9.14 mm	0.36 in	Current, Frequency, Voltage, Wattage	LED - Red Characters
Murata Power Solutions Inc. ACM20-5-AC1-B-F-C	60 °C	0 °C	Screw Terminal	Built In Current Transformer (Primary)	85 VAC	264 VAC	Energy Monitor	0.096 lb	43.54 g	4	0 A	32 A	Panel Mount - Surface	9.14 mm	0.36 in	Current, Frequency, Voltage, Wattage
Murata Power Solutions Inc. ACM20-5-AC1-R-C
Murata Power Solutions Inc. ACM20-5-AC1-R-C

Description

General part information

ACM20-5 Series

Energy Monitor LED - Green Characters Display Panel Mount - Surface
