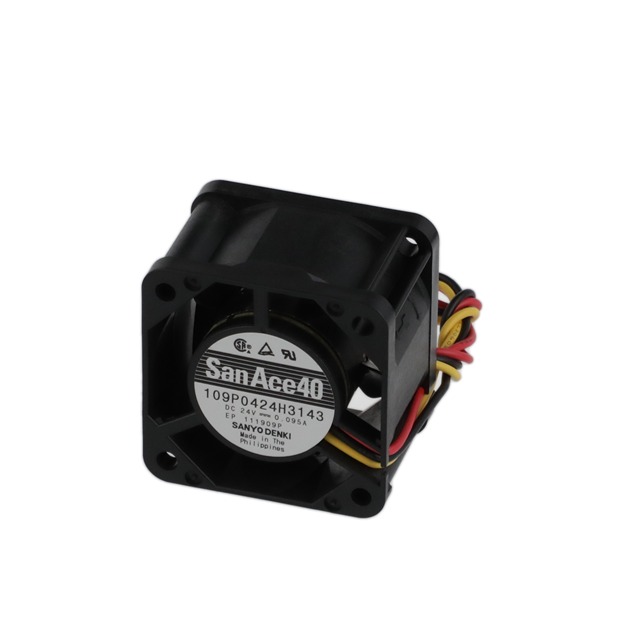

109P0424H3143

Active

Sanyo Denki America Inc.

FAN AXL 40X28MM 24VDC RECT CONN

Deep-Dive with AI

Search across all available documentation for this part.

Documents109P0424H3143 Handling Instructions for Fan Motors

109P0424H3143

Active

Sanyo Denki America Inc.

FAN AXL 40X28MM 24VDC RECT CONN

Deep-Dive with AI

Documents109P0424H3143 Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0424H3143

Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	37 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	8700 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	3 Position Rectangular Connector
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC
Weight	0.115 lb
Weight	52.16 g
Width [y]	28 mm

109P0424 Series

Part	RPM	Current Rating (Amps)	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Noise	Power (Watts)	Termination	Approval Agency	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Material - Blade	Width [y]	Air Flow	Air Flow	Weight	Weight	Fan Type	Features	Lifetime @ Temp.	Width [x]
Sanyo Denki America Inc. 109P0424H3D013	8700 RPM	0.095 A	Plastic	40 mm	Square	40 mm	Ball	37 dB	2.28 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC	102.9 Pa	0.414 in H2O	Plastic	28 mm	0.316 m³/min	11.3 CFM	0.115 lb	52.16 g	Tubeaxial	Locked Rotor Sensor
Sanyo Denki America Inc. 109P0424G602	12500 RPM	150 mA	Plastic	40 mm	Square	40 mm	Ball	44 dB	3.6 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	27.6 VDC	12 VDC	153.8 Pa	0.618 in H2O	Plastic	20 mm	0.347 m³/min	12.4 CFM	0.101 lb	45.81 g	Tubeaxial		40000 Hrs
Sanyo Denki America Inc. 109P0424G3013	11500 RPM	0.19 A	Plastic	40 mm	Square	40 mm	Ball	42 dB	4.56 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	26.4 VDC	12 VDC	179 Pa	0.719 in H2O	Plastic	28 mm	0.414 mł/min	14.8 CFM	0.115 lb	52.16 g	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	40000 Hrs
Sanyo Denki America Inc. 109P0424H702	7700 RPM		Plastic	40 mm	Square	40 mm	Ball	28 dB	1.92 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C			75.5 Pa	0.303 in H2O	Plastic		0.179 mł/min	6.4 CFM	0.071 lb	32.21 g	Tubeaxial			15 mm
Sanyo Denki America Inc. 109P0424H3143	8700 RPM	140 mA	Plastic	40 mm	Square	40 mm	Ball	37 dB		3 Position Rectangular Connector	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	12 VDC			Plastic	28 mm			0.115 lb	52.16 g	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0424F3023	6700 RPM	0.055 A	Plastic	40 mm	Square	40 mm	Ball	30 dB(A)	1.32 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	14 VDC	58.8 Pa	0.236 in H2O	Plastic	28 mm	0.241 mł/min	8.6 CFM	0.115 lb	52.16 g	Tubeaxial
Sanyo Denki America Inc. 109P0424G3D013	11500 RPM	0.19 A	Plastic	40 mm	Square	40 mm	Ball	42 dB	4.56 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	26.4 VDC	12 VDC	179 Pa	0.719 in H2O	Plastic	28 mm	0.414 mł/min	14.8 CFM	0.115 lb	52.16 g	Tubeaxial	Locked Rotor Sensor	40000 Hrs
Sanyo Denki America Inc. 109P0424F602	6500 RPM	60 mA	Plastic	40 mm	Square	40 mm	Ball	28 dB	1.44 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	70 °C	-20 C	70 °C	27.6 VDC	14 VDC	45.1 Pa	0.181 in H2O	Plastic	20 mm	0.182 m³/min	6.5 CFM	0.101 lb	45.81 g	Tubeaxial
Sanyo Denki America Inc. 109P0424J3023	12500 RPM	0.18 A	Plastic	40 mm	Square	40 mm	Ball	44 dB	4.32 W	2 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	26.4 VDC	12 VDC	210 Pa	0.843 in H2O	Plastic	28 mm	0.454 m³/min	16.2 CFM	0.115 lb	52.16 g	Tubeaxial		40000 Hrs
Sanyo Denki America Inc. 109P0424D601	11000 RPM		Plastic	40 mm	Square	40 mm	Ball	42 dB	3.12 W	3 Wire Leads	CSA TUV UL	24 VDC	-20 °C	60 °C	-20 C	60 °C	27.6 VDC	12 VDC	124 Pa	0.498 in H2O	Plastic	20 mm	0.305 mł/min	10.9 CFM	0.101 lb	45.81 g	Tubeaxial	Speed Sensor (Tach)	40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.58
		10	$ 11.22
		25	$ 10.72
		50	$ 10.50
		126	$ 11.17

Description

General part information

109P0424 Series

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 3 Position Rectangular Connector
