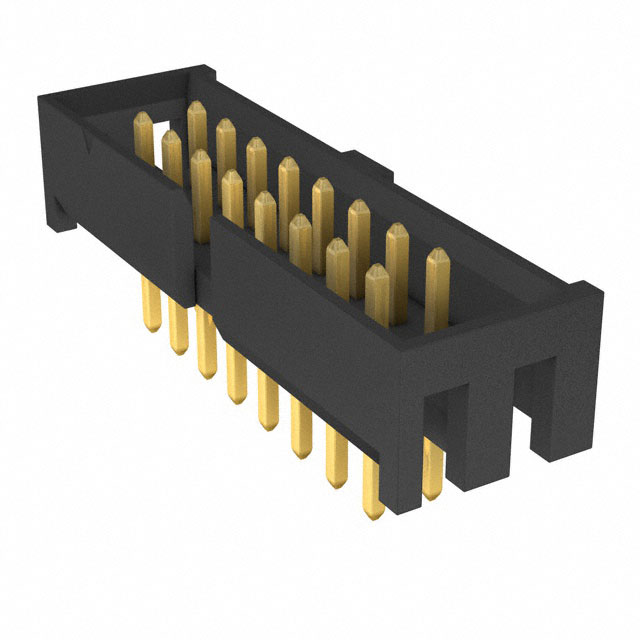

STMM-108-02-G-D

Active

Samtec Inc.

CONN HEADER VERT 16POS 2MM

Deep-Dive with AI

Documents2.00 mm Shrouded Terminal Strip 2.00 mm Shrouded Terminal Strip, Cable Mate +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STMM-108-02-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.302 in
Overall Contact Length	7.67 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

STMM-108 Series

Part	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Color	Connector Type	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Features	Number of Positions	Current Rating (Amps)	Contact Material	Number of Rows	Style	Fastening Type	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. STMM-108-01-F-D-SM-TR	Surface Mount	Gold	Tin	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Shrouded - 4 Wall	All	0.1 in	2.54 mm	0.079 in	2 mm	3 µin	0.076 µm	4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square
Samtec Inc. STMM-108-01-S-D-SM-TR	Surface Mount	Gold	Tin	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Shrouded - 4 Wall	All	0.1 in	2.54 mm	0.079 in	2 mm	30 Áin	0.76 Ám	4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square
Samtec Inc. STMM-108-01-TM-D-SM	Surface Mount		Tin	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Shrouded - 4 Wall	All	0.1 in	2.54 mm	0.079 in	2 mm			4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square
Samtec Inc. STMM-108-02-S-D-SM-P-TR	Surface Mount	Gold	Tin	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Shrouded - 4 Wall	All	0.12 in	3.05 mm	0.079 in	2 mm	30 Áin	0.76 Ám	4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot Pick and Place	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square
Samtec Inc. STMM-108-01-L-D-RA	Through Hole Right Angle	Gold	Tin	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Shrouded - 4 Wall	All	0.1 in	2.54 mm	0.079 in	2 mm	10 çin	0.25 çm	6 mm	0.236 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square	0.09 "	2.29 mm
Samtec Inc. STMM-108-01-F-D-RA	Through Hole Right Angle	Gold	Tin	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Shrouded - 4 Wall	All	0.1 in	2.54 mm	0.079 in	2 mm	3 µin	0.076 µm	6 mm	0.236 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square	0.09 "	2.29 mm
Samtec Inc. STMM-108-02-SM-D-SM-P-TR	Surface Mount	Gold	Tin	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Shrouded - 4 Wall	All	0.12 in	3.05 mm	0.079 in	2 mm	30 Áin	0.76 Ám	4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot Pick and Place	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square
Samtec Inc. STMM-108-02-G-D	Through Hole	Gold	Gold	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Shrouded - 4 Wall	All	0.12 in	3.05 mm	0.079 in	2 mm	20 µin	0.51 µm	4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square	0.118 in	3 mm	3 µin	0.076 µm	0.302 in	7.67 mm
Samtec Inc. STMM-108-01-T-D-SM-K-TR	Surface Mount		Tin	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Shrouded - 4 Wall	All	0.1 in	2.54 mm	0.079 in	2 mm			4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Keying Slot Pick and Place	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square
Samtec Inc. STMM-108-02-T-D-SM-LC-P	Surface Mount		Tin	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Shrouded - 4 Wall	All	0.12 in	3.05 mm	0.079 in	2 mm			4.83 mm	0.19 in	Black	Header	Solder	0.079 in	2 mm	Male Pin	Board Lock Keying Slot Pick and Place	16	3 A	Phosphor Bronze	2	Board to Cable/Wire	Push-Pull	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.63
		25	$ 4.19
		50	$ 3.89
		100	$ 3.71
		500	$ 3.45

Description

General part information

STMM-108 Series

Connector Header Through Hole 16 position 0.079" (2.00mm)

Documents

Technical documentation and resources

2.00 mm Shrouded Terminal Strip

2.00 mm Shrouded Terminal Strip, Cable Mate

STMM Series Datasheet 03

Datasheet

STMM Datasheet

Datasheet
