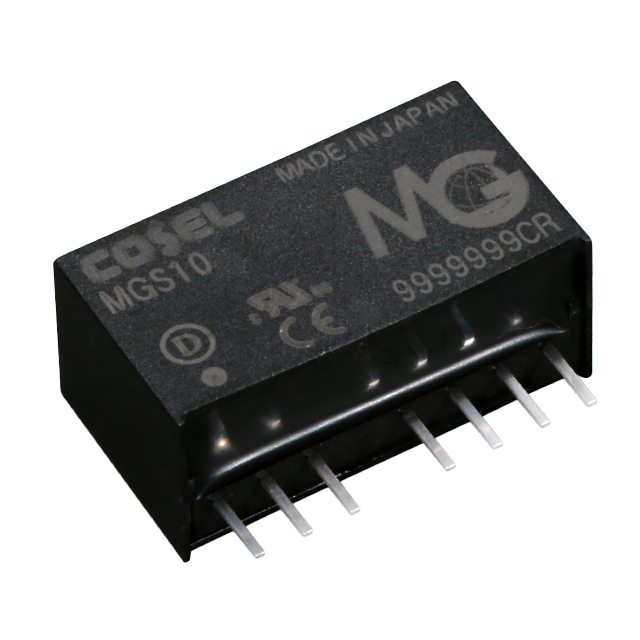

MGS10123R3
ActiveCosel USA, Inc.
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 8.58W, HYBRID, ROHS COMPLIANT, PACKAGE-7
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGS10123R3
ActiveCosel USA, Inc.
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 8.58W, HYBRID, ROHS COMPLIANT, PACKAGE-7
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGS10123R3 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2.6 A |
| Efficiency | 87 % |
| Features | OCP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [y] | 9.5 mm |
| Size / Dimension [z] | 0.47 " |
| Size / Dimension [z] | 12 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 28.72 | |
| 5 | $ 28.50 | |||
| 10 | $ 28.28 | |||
| 25 | $ 27.84 | |||
| 50 | $ 26.51 | |||
| 100 | $ 24.30 | |||
| 250 | $ 23.86 | |||
Description
General part information
MGS10123 Series
Isolated Module DC DC Converter 1 Output 3.3V 2.6A 9V - 18V Input
