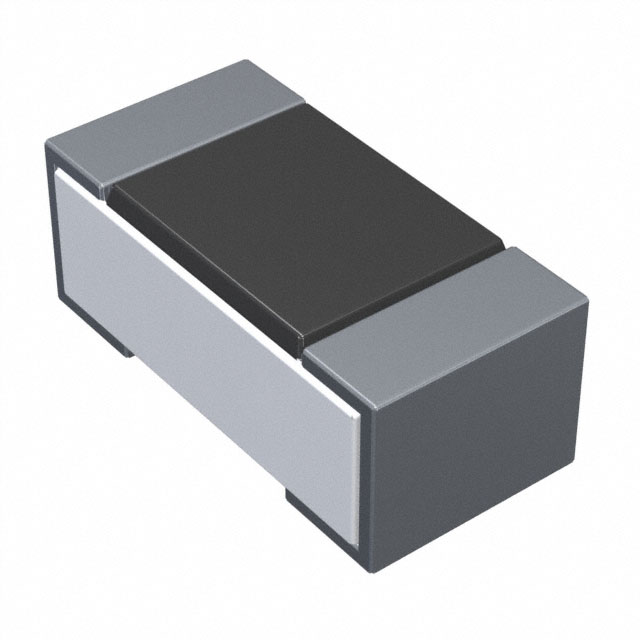

CR0201-FW-2402GLF

Active

Bourns Inc.

RES 0201 24K 1% 50MW TC200 /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CR0201-FW-2402GLF

Active

Bourns Inc.

RES 0201 24K 1% 50MW TC200 /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR0201-FW-2402GLF

Composition	Thick Film
Height - Seated (Max) [Max] [z]	0.26 mm
Height - Seated (Max) [Max] [z]	0.01 "
Number of Terminations	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 Metric
Package / Case	0201
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance	24 kOhms
Size / Dimension [x]	0.6 mm
Size / Dimension [x]	0.024 "
Size / Dimension [y]	0.3 mm
Size / Dimension [y]	0.012 "
Supplier Device Package	0201
Temperature Coefficient	200 ppm/°C
Tolerance	1 %

CR0201 Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Power (Watts)	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Supplier Device Package	Tolerance	Composition	Number of Terminations
Bourns Inc. CR0201-FW-4701GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	4.7 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	1 %	Thick Film	2
Bourns Inc. CR0201-FW-2402GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	24 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	1 %	Thick Film	2
Bourns Inc. CR0201-FW-4302GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	43 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	1 %	Thick Film	2
Bourns Inc. CR0201-FW-9092GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	90.9 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	1 %	Thick Film	2
Bourns Inc. CR0201-JW-104GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	100 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	5 %	Thick Film	2
Bourns Inc. CR0201-JW-301GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	300 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	5 %	Thick Film	2
Bourns Inc. CR0201-JW-390GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	39 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	5 %	Thick Film	2
Bourns Inc. CR0201-FW-5493GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	549 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	1 %	Thick Film	2
Bourns Inc. CR0201-FW-4300GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	430 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	1 %	Thick Film	2
Bourns Inc. CR0201-FW-17R4GLF	0.26 mm	0.01 "	200 ppm/°C	-55 °C	125 °C	0.05 W	50 mW	17.4 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "	0603 Metric	0201	0201	1 %	Thick Film	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.02
		100	$ 0.01
		1000	$ 0.01
		2500	$ 0.01
		5000	$ 0.00
	Digi-Reel®	1	$ 0.10
		10	$ 0.02
		100	$ 0.01
		1000	$ 0.01
		2500	$ 0.01
		5000	$ 0.00
	Tape & Reel (TR)	10000	$ 0.00
		20000	$ 0.00
Newark	Each (Supplied on Full Reel)	1	$ 0.01
		5000	$ 0.01
		10000	$ 0.00

Description

General part information

CR0201 Series

24 kOhms ±1% 0.05W, 1/20W Chip Resistor 0201 (0603 Metric) Thick Film
