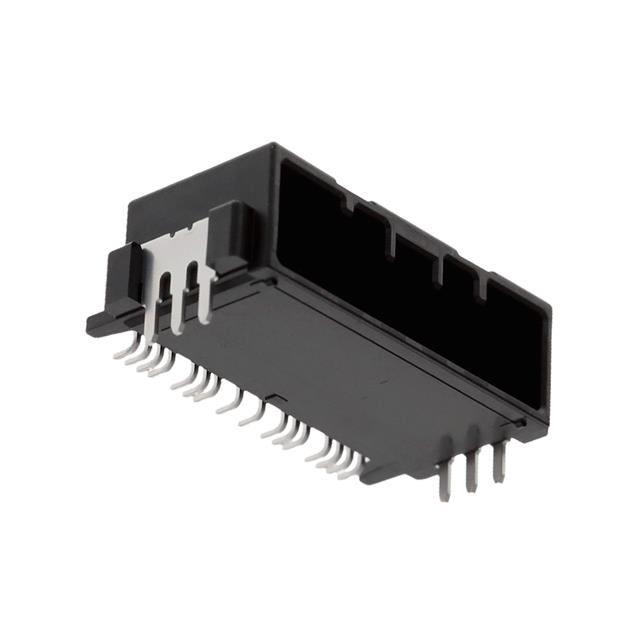

ZE05-16DP-2H

Active

Hirose Electric Co Ltd

CONN RCPT SMT R/A 2MM 16POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZE05-16DP-2H

Active

Hirose Electric Co Ltd

CONN RCPT SMT R/A 2MM 16POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.52
		10	$ 2.29
		25	$ 2.17
		50	$ 2.12
		100	$ 2.02
	Digi-Reel®	1	$ 2.52
		10	$ 2.29
		25	$ 2.17
		50	$ 2.12
		100	$ 2.02
	Tape & Reel (TR)	300	$ 1.43
		600	$ 1.33
		900	$ 1.28
		1500	$ 1.25

Description

General part information

ZE05 Series

Connector Header Surface Mount, Right Angle 16 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZE05-16DP-2H	ZE05 Series

Color	-	Black
Connector Type	Header	Plug, Header
Contact Finish	-	Tin
Contact Finish - Post	Tin	Tin
Contact Finish Thickness	-	39.4 Áin
Contact Finish Thickness	-	1 Ám
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Finish Thickness - Post	-	1 çm
Contact Finish Thickness - Post	-	39.4 çin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Female Socket, Male Pin
Current Rating (Amps)	5 A, 2 A	2 - 5 A
Fastening Type	-	Locking Ramp, Latch Lock
Features	Solder Retention	Solder Retention
Insulation Color	Black	Black
Insulation Height	8.84 mm	8.84 mm
Insulation Height	0.348 in	0.348 in
Insulation Height	-	1.457 "
Insulation Height	-	37 mm
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Free Hanging (In-Line), Surface Mount, Right Angle
Number of Positions	16	16
Number of Positions	-	2 - 24
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pin or Socket	-	Socket
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Type	-	Stamped
Voltage Rating	60 VAC	60 VAC
Wire Gauge	-	20 AWG
Wire Gauge	-	22 AWG

ZE05 Series

CONN PLUG HSG 8POS 2.00MM

Part	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Contact Termination	Contact Type	Fastening Type	Color	Mounting Type	Insulation Material	Features	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Color	Insulation Height	Insulation Height	Contact Shape	Contact Material	Voltage Rating	Number of Positions Loaded	Shrouding	Termination	Number of Positions	Insulation Height [z]	Insulation Height [z]	Pin or Socket	Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]
Hirose Electric Co Ltd ZE05-8DS-HU/R	2	125 °C	-40 °C	8	0.079 in	2 mm	Plug	Crimp	Female Socket	Locking Ramp	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)
Hirose Electric Co Ltd ZE05-8DP-2H	2	125 °C	-40 °C	8			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0	1 µm	39.4 µin	0.079 in	2 mm	2 A, 5 A	Tin	1 çm	39.4 çin	Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-24DP-2H	2	125 °C	-40 °C	24			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-16DS-HU/R	2	125 °C	-40 °C		0.079 in	2 mm	Plug	Crimp	Female Socket	Latch Lock	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)																					16
Hirose Electric Co Ltd ZE05-12DP-2H	2	125 °C	-40 °C	12			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-20DP-2H	2	125 °C	-40 °C	20			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black	8.84 mm	0.348 in	Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder
Hirose Electric Co Ltd ZE05-20DS-HU/R	2	125 °C	-40 °C	20	0.079 in	2 mm	Plug	Crimp	Female Socket	Latch Lock	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)
Hirose Electric Co Ltd ZE05-2P-2H	1	125 °C	-40 °C	2			Header		Male Pin			Surface Mount, Right Angle	Nylon, Polyamide (PA)	Solder Retention	UL94 V-0			0.079 in	2 mm	2 A, 5 A	Tin			Board to Cable/Wire	Black			Square	Brass	60 VAC	All	Shrouded - 4 Wall	Solder		1.457 "	37 mm
Hirose Electric Co Ltd ZE05-2S-HU/R	2	125 °C	-40 °C	2	0.079 in	2 mm	Plug	Crimp	Female Socket	Latch Lock	Black	Free Hanging (In-Line)	Nylon, Polyamide (PA)
Hirose Electric Co Ltd ZE05-2022SCF								Crimp																													Socket	Stamped	Tin	39.4 Áin	1 Ám	20 AWG	22 AWG
