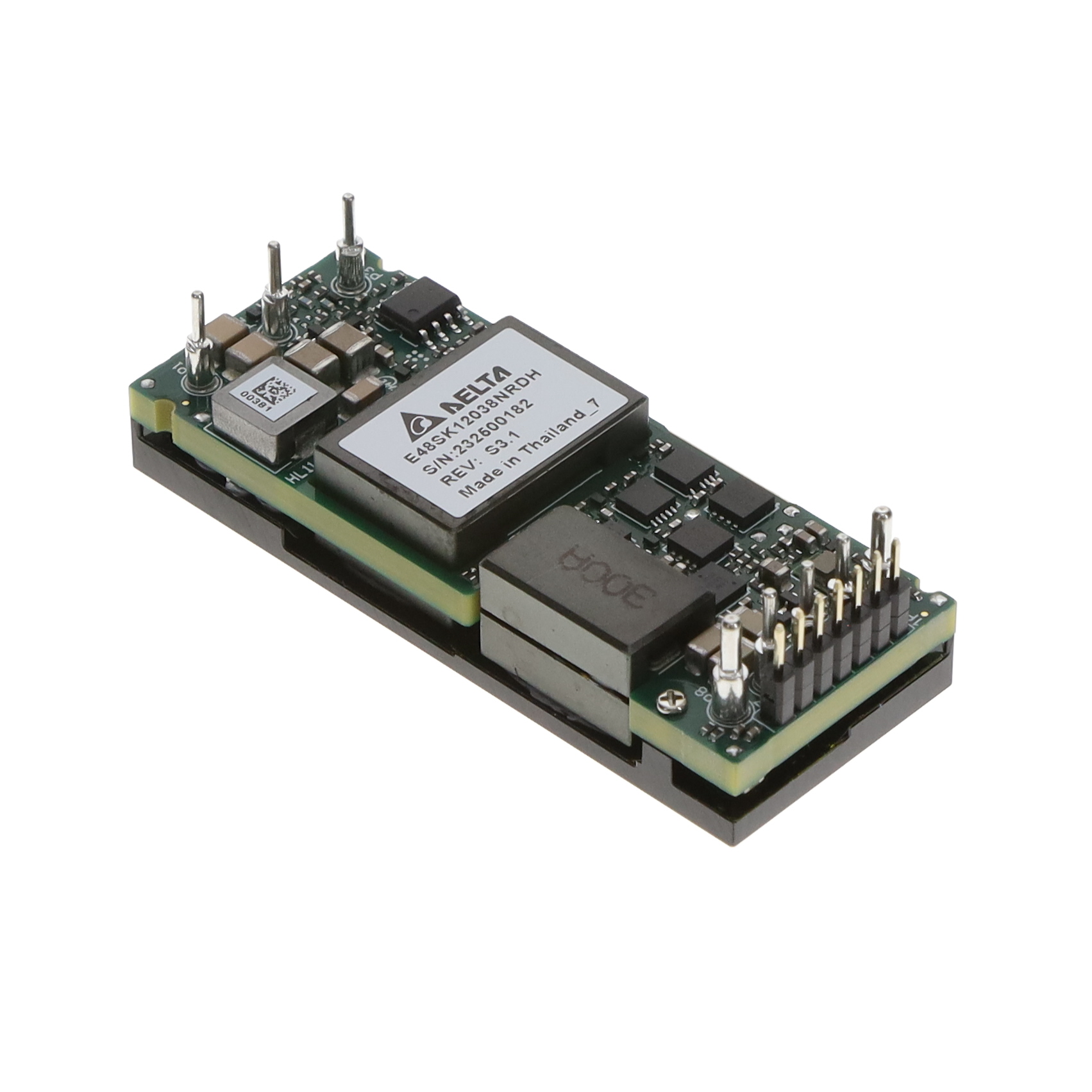

E48SK12038NRDH
ActiveDelta Electronics
36-75VIN, 12V 450W, 2250VISO, W/
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E48SK12038NRDH |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, UL, EN, CSA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 37.5 A |
| Efficiency | 95.6 % |
| Features | Remote On/Off, Adjustable Output, Remote Sense |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Eighth Brick |
| Power (Watts) | 450 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Standard Number | 60950-1, 62368-1 |
| Supplier Device Package | Eighth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 72.72 | |
| 5 | $ 72.15 | |||
| 21 | $ 71.58 | |||
| 42 | $ 65.90 | |||
| 84 | $ 61.36 | |||
Description
General part information
E48SK Series
Isolated Module DC DC Converter 1 Output 12V 37.5A 36V - 75V Input
