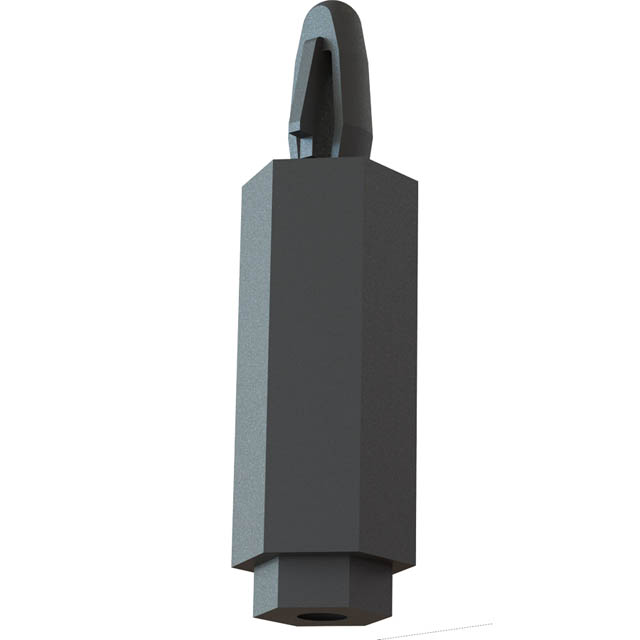

TCBN-T1-M3-6-10

Active

BRD SPT SNAP LOCK SCREW MNT 10MM

Active

BRD SPT SNAP LOCK SCREW MNT 10MM

Description

General part information

Board Support Snap Lock / Screw Mount Nylon 0.394" (10.00mm)

Parameters and characteristics for this part

Part	Features	Support Panel Thickness	Length - Overall	Mounting Hole Diameter	Between Board Height	Support Hole Diameter	Holding Type	Material	Mounting Type
Essentra Components TCBN-T1-M3-8-60	M3 Thread	0.063 in	2.736 in	0.125 in	2.362 in	0.157 in	Snap Lock	Nylon	Screw Mount
Essentra Components TCBN-T1-M3-6-10	M3 Thread	0.063 in	0.768 in	0.125 in	0.394 in	0.157 in	Snap Lock	Nylon	Screw Mount
Essentra Components TCBN-T1-M3-6-5	M3 Thread	0.063 in	0.571 in	0.125 in	0.197 in	0.157 in	Snap Lock	Nylon	Screw Mount
Essentra Components TCBN-T1-M3-6-12	M3 Thread	0.063 in	0.846 in	0.125 in	0.472 in	0.157 in	Snap Lock	Nylon	Screw Mount
Essentra Components TCBN-T1-M4-8-9	M4 Thread	0.063 in	0.728 in	0.189 in	0.354 in	0.157 in	Snap Lock	Nylon	Screw Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
