953698-3
ActiveTE Connectivity AMP Connectors

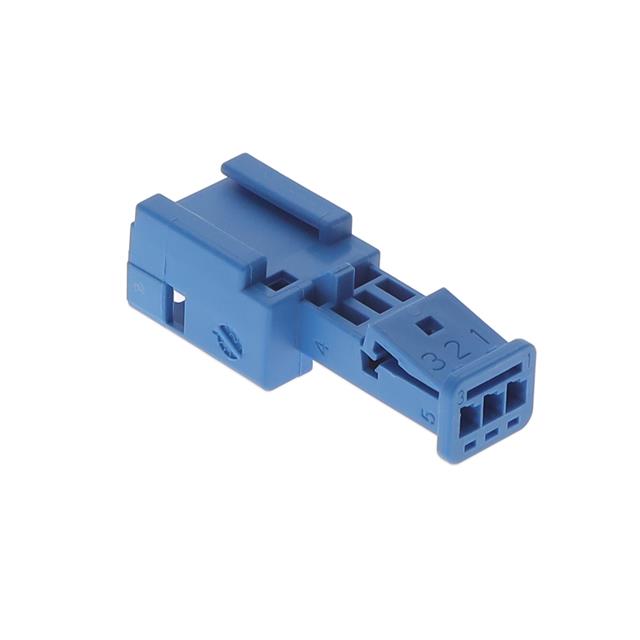

3W MQS PIN HSG POSIT MATE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
953698-3
ActiveTE Connectivity AMP Connectors
3W MQS PIN HSG POSIT MATE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 953698-3 | 953698 Series |
|---|---|---|
| Color | Blue | White, Blue, Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Tab, Male Pin |
| Fastening Type | - | Latch Lock |
| Features | Terminal Position Lock (TPA) | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
953698 Series
3W MQS PIN HSG POSIT MATE
| Part | Fastening Type | Mounting Type | Contact Type | Color | Features | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Number of Rows | Insulation Material | Contact Termination | Connector Type | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 953698-2 | Latch Lock | Free Hanging (In-Line) | Tab | White | Terminal Position Lock (TPA) | 85 °C | -40 °C | 2.54 mm | 0.1 in | 1 | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Plug | |
TE Connectivity AMP Connectors 953698-3 | Free Hanging (In-Line) | Male Pin | Blue | Terminal Position Lock (TPA) | 85 °C | -40 °C | 2.54 mm | 0.1 in | 1 | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Plug | ||
TE Connectivity AMP Connectors 953698-1 | Free Hanging (In-Line) | Male Pin | Black | 85 °C | -40 °C | 1 | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Plug | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.45 | |||
| 1500 | $ 0.38 | |||
| 3000 | $ 0.37 | |||
Description
General part information
953698 Series
3 Rectangular Connectors - Housings Plug Blue 0.100" (2.54mm)
