953698-1

Active

TE Connectivity AMP Connectors

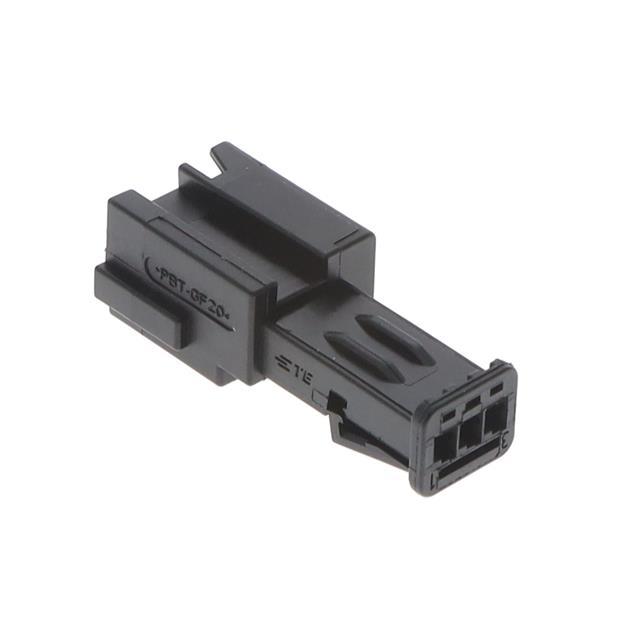

CONN PLUG HSG 3POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 3POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	953698-1	953698 Series

Color	Black	White, Blue, Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Tab, Male Pin
Fastening Type	-	Latch Lock
Features	-	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	-	2.54 mm
Pitch	-	0.1 in

3W MQS PIN HSG POSIT MATE

Part	Fastening Type	Mounting Type	Contact Type	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Rows	Insulation Material	Contact Termination	Connector Type	Note
TE Connectivity AMP Connectors 953698-2	Latch Lock	Free Hanging (In-Line)	Tab	White	Terminal Position Lock (TPA)	85 °C	-40 °C	2.54 mm	0.1 in	1	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Plug
TE Connectivity AMP Connectors 953698-3		Free Hanging (In-Line)	Male Pin	Blue	Terminal Position Lock (TPA)	85 °C	-40 °C	2.54 mm	0.1 in	1	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Plug
TE Connectivity AMP Connectors 953698-1		Free Hanging (In-Line)	Male Pin	Black		85 °C	-40 °C			1	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Plug	Contacts Not Included
