HM-PWR-SCK-01-LR

Active

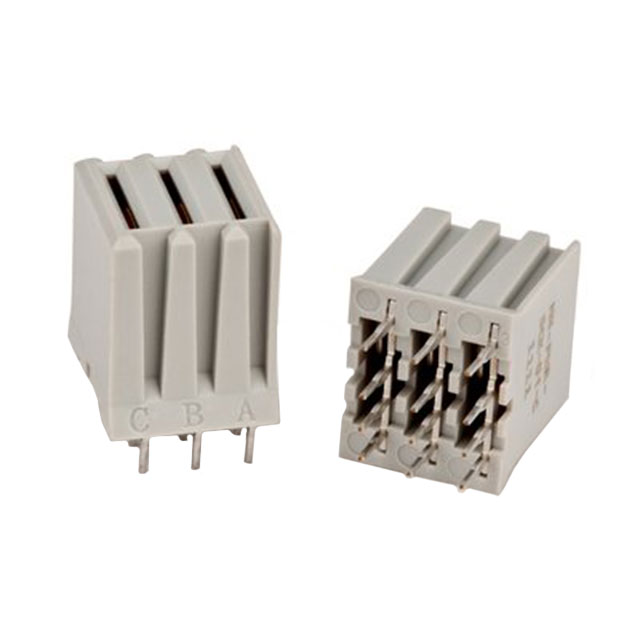

CONN RCPT BLADE PWR 3POS PCB

Search across all available documentation for this part.

Active

CONN RCPT BLADE PWR 3POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	HM-PWR-SCK-01-LR

Connector Style	Blade Power
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Contact Layout, Typical	3 Power
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

CONN RCPT BLADE PWR 3POS PCB

Part	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions Loaded	Contact Finish	Contact Layout, Typical	Mounting Type
3M HM-PWR-SCK-01-LR	UL94 V-0	3 Áin	0.076 Ám	1	Press-Fit	Blade Power	-55 °C	125 °C	Receptacle, Female Blade Sockets	All	Gold	3 Power	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 2.30

General part information

3 Connector Receptacle, Female Blade Sockets Through Hole Blade Power
