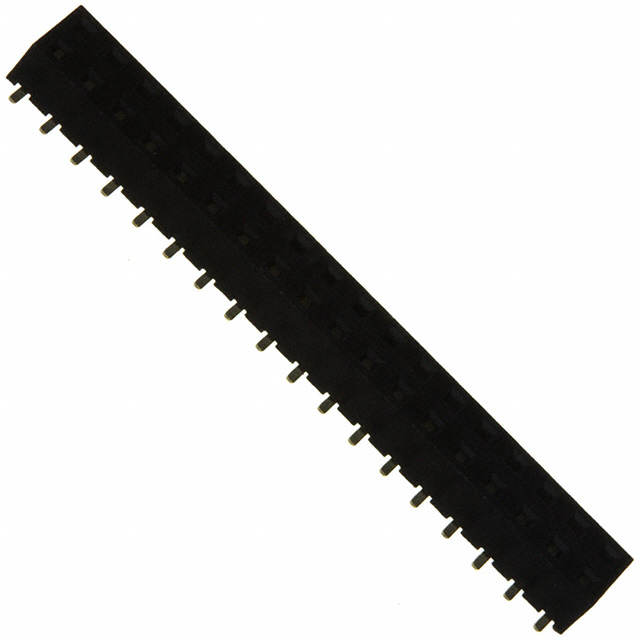

Specification	NPPN182GFNS-RC

Connector Type	Top or Bottom Entry, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.11 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Style	Board
Termination	Solder

NPPN182 Series

Part	Number of Positions Loaded	Termination	Current Rating	Insulation Height	Contact Type	Mounting Type	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating	Connector Type	Number of Positions	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Row Spacing - Mating	Style	Material Flammability Rating	Fastening Type	Features	Insulation Color	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
Sullins Connector Solutions NPPN182FFKP-RC	All	Solder	2 A	0.173 in	Female Socket	Surface Mount	0.079 in	-40 °C	105 °C	Flash	Header	36	Gold	2	Gold	0.079 in	Board	UL94 V-0	Push-Pull	Board Guide	Black	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Flash	Flash
Sullins Connector Solutions NPPN182GFNS-RC	All	Solder	2 A	0.11 in	Female Socket	Surface Mount	0.079 in	-40 °C	105 °C	Flash	Header Top or Bottom Entry	36	Gold	2	Gold	0.079 in	Board	UL94 V-0	Push-Pull		Black	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Flash	Flash
Sullins Connector Solutions NPPN182FFKS-RC	All	Solder	2 A	0.173 in	Female Socket	Surface Mount	0.079 in	-40 °C	105 °C	Flash	Header	36	Gold	2	Gold	0.079 in	Board	UL94 V-0	Push-Pull		Black	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Flash	Flash
