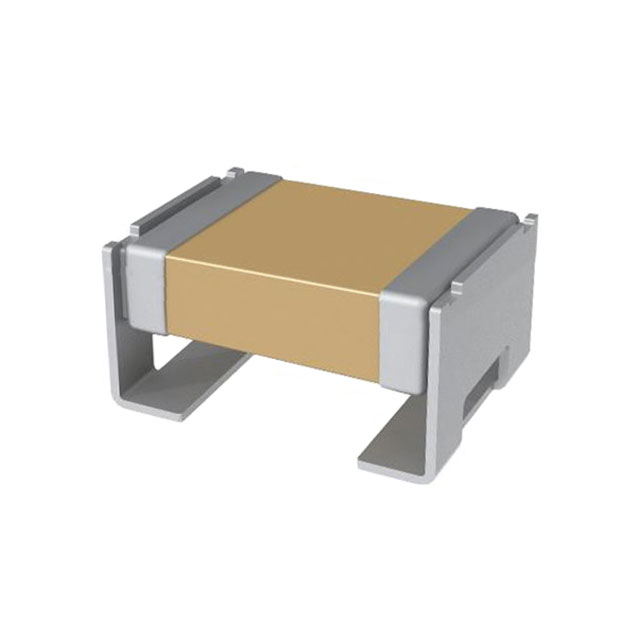

JSNIJ4820KB6L0

KEMET

CAP FILM 8.2UF 10% 250VDC SMD

Search across all available documentation for this part.

KEMET

CAP FILM 8.2UF 10% 250VDC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	JSNIJ4820KB6L0

Applications	DC Link, DC Filtering
Capacitance	8.2 µF
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Features	Low ESR, Low ESL
Height - Seated (Max) [Max]	0.63 in
Height - Seated (Max) [Max]	16 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	J-Lead, SMD
Size / Dimension [x]	0.681 in
Size / Dimension [x]	17.3 mm
Size / Dimension [y]	1.181 in
Size / Dimension [y]	30 mm
Tolerance	10 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

Part	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Voltage Rating - AC	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Applications	Voltage Rating - DC
KEMET JSNIJ4820KB6L0	8.2 µF	0.63 in	16 mm	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	160 V	Low ESL Low ESR	-55 °C	125 °C	J-Lead SMD	Surface Mount	0.681 in	1.181 in	30 mm	17.3 mm	10 %	DC Filtering DC Link	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	756	$ 21.84

General part information

8.2 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked SMD, J-Lead

Technical documentation and resources
