1942/3 BK003

Active

ALPHA WIRE

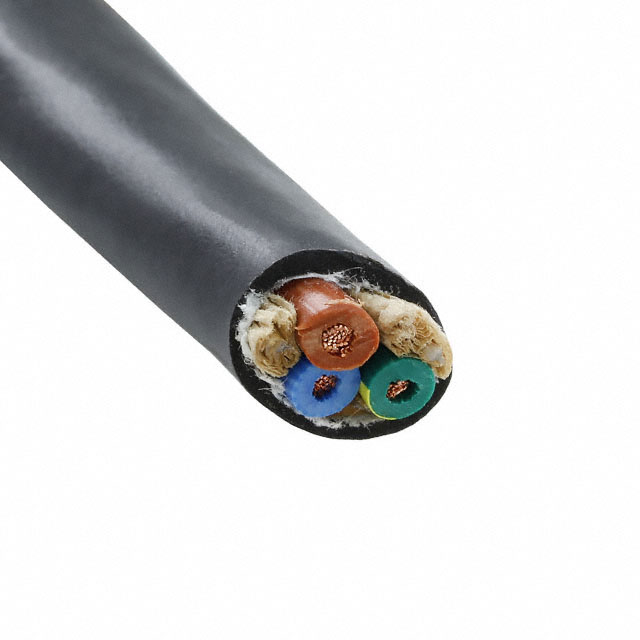

MULTI-CONDUCTOR CABLE 3CONDUCTORS 16AWG 8.9MM 300V BLACK 76.2M SPOOL

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-CONDUCTOR CABLE 3CONDUCTORS 16AWG 8.9MM 300V BLACK 76.2M SPOOL

Technical Specifications

Parameters and characteristics for this part

Specification	1942/3 BK003

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.336 "
Jacket (Insulation) Diameter [diameter]	8.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	3000 "
Length	76.2 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Voltage	300 V
Wire Gauge	16 AWG

MULTI-CONDUCTOR CABLE 3CONDUCTORS 16AWG 8.9MM 300V BLACK 76.2M SPOOL

Part	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Features	Number of Conductors	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Wire Gauge	Length [x]	Length [x]
ALPHA WIRE 1942/3 BK003	300 V	-30 ░C	105 ░C	3000 "	76.2 m	Poly-Vinyl Chloride (PVC)	34 AWG	65	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Drain Wire	3	Black	0.336 "	8.53 mm	Copper, Bare	16 AWG	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 16 AWG 100.0' (30.5m)
