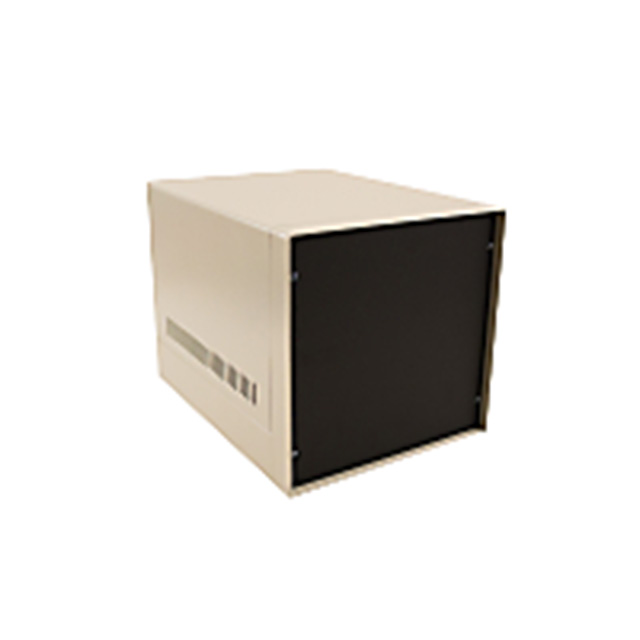

1452KE9

Active

Hammond Manufacturing

BOX ALUM GRAY 13.5"L X 8.99"W

Deep-Dive with AI

Search across all available documentation for this part.

1452KE9

Active

Hammond Manufacturing

BOX ALUM GRAY 13.5"L X 8.99"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 159.37
		5	$ 136.18
		10	$ 131.75

Description

General part information

1452 Series

Box Metal, Aluminum Gray U Shaped Pieces 13.500" L x 8.990" W (342.90mm x 228.35mm) X 8.500" (215.90mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1452KE9	1452 Series

Area (L x W)	121 in˛	62.9 - 161 in˛
Area (L x W)	781 cm˛	406 - 1039 cm˛
Area (L x W)	-	519 cm²
Area (L x W)	-	80.4 in²
Color	Gray	Gray
Container Type	Box	Box
Design	U Shaped Pieces	U Shaped Pieces
Features	Vented Panels, Separate Panel or Cover Thickness	Vented Panels, Separate Panel or Cover Thickness
Height [z]	8.5 in	6.5 - 11.5 in
Height [z]	215.9 mm	165.1 - 292.1 mm
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension [x]	13.5 in	10.5 - 17.5 "
Size / Dimension [x]	342.9 mm	266.7 - 444.5 mm
Size / Dimension [y]	8.99 in	5.99 - 9.5 in
Size / Dimension [y]	228.35 mm	152.15 - 241.3 mm
Thickness	18 Gauge	18 Gauge

1452 Series

BOX ALUM GRAY 11.5"L X 6.99"W

Part	Container Type	Area (L x W) [custom]	Area (L x W) [custom]	Height [z]	Height [z]	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Design	Material	Features	Thickness	Area (L x W)	Area (L x W)
Hammond Manufacturing 1452HD7	Box	519 cm²	80.4 in²	7.5 in	190.5 mm	Gray	6.99 in	177.55 mm	11.5 "	292.1 mm	U Shaped Pieces	Aluminum, Metal	Separate Panel or Cover Thickness, Vented Panels	18 Gauge
Hammond Manufacturing 1452GC6	Box			6.5 in	165.1 mm	Gray	5.99 in	152.15 mm	10.5 in	266.7 mm	U Shaped Pieces	Aluminum, Metal	Separate Panel or Cover Thickness, Vented Panels	18 Gauge	406 cm˛	62.9 in˛
Hammond Manufacturing 1452KE9	Box			8.5 in	215.9 mm	Gray	8.99 in	228.35 mm	13.5 in	342.9 mm	U Shaped Pieces	Aluminum, Metal	Separate Panel or Cover Thickness, Vented Panels	18 Gauge	781 cm˛	121 in˛
Hammond Manufacturing 1452FF13	Box			9.5 in	241.3 mm	Gray	9.5 "	241.3 mm	12.99 in	329.95 mm	U Shaped Pieces	Aluminum, Metal	Separate Panel or Cover Thickness, Vented Panels	18 Gauge	794 cm²	123 in²
Hammond Manufacturing 1452DE11	Box			8.5 in	215.9 mm	Gray	7.5 in	190.5 mm	10.99 in	279.15 mm	U Shaped Pieces	Aluminum, Metal	Separate Panel or Cover Thickness, Vented Panels	18 Gauge	532 cm²	82.4 in²
Hammond Manufacturing 1452FH17	Box			11.5 in	292.1 mm	Gray	9.5 "	241.3 mm	16.99 in	431.55 mm	U Shaped Pieces	Aluminum, Metal	Separate Panel or Cover Thickness, Vented Panels	18 Gauge	1039 cm²	161 in²
Hammond Manufacturing 1452PG9	Box			10.5 "	266.7 mm	Gray	8.99 in	228.35 mm	17.5 in	444.5 mm	U Shaped Pieces	Aluminum, Metal	Separate Panel or Cover Thickness, Vented Panels	18 Gauge	1013 cm²	157 in²
