M3DEK-1006J

Active

IDC CABLE - MKR10K/MC10G/MCE10K

Search across all available documentation for this part.

Active

IDC CABLE - MKR10K/MC10G/MCE10K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

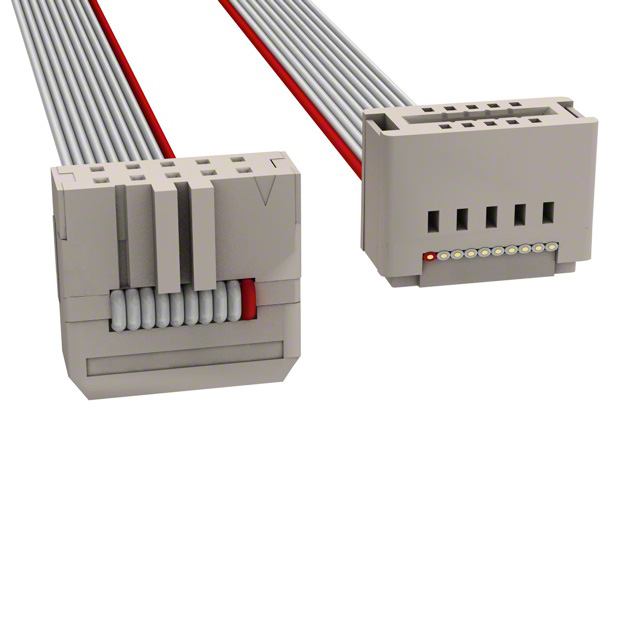

10 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")

Technical documentation and resources

Specification	M3DEK-1006J	M3DEK Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple
Connector Type	Socket to Card Edge	Socket to Card Edge
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length	152.4 mm	152.4 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	457.2 mm
Length	-	1.5 ft
Number of Positions	10	10
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

Part	Contact Finish	Shielding	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Cable Termination	Features	Number of Positions	Pitch - Cable	Pitch - Cable	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Length	Length	Length	Color
3M M3DEK-1018J	Gold	Unshielded	457.2 mm	1.5 ft	0.1 in	2.54 mm	IDC	Polarizing Key, Strain Relief	10	0.05 "	1.27 mm	Socket to Card Edge	0.76 Ám	30 Áin	2
3M M3DEK-1006J	Gold	Unshielded			0.1 in	2.54 mm	IDC	Polarizing Key, Strain Relief	10	0.05 "	1.27 mm	Socket to Card Edge	0.76 Ám	30 Áin	2	152.4 mm	6 "	0.5 '
3M M3DEK-1018R	Gold	Unshielded	457.2 mm	1.5 ft	0.1 in	2.54 mm	IDC	Polarizing Key, Strain Relief	10	0.05 "	1.27 mm	Socket to Card Edge	0.76 Ám	30 Áin	2				Multiple, Ribbon
