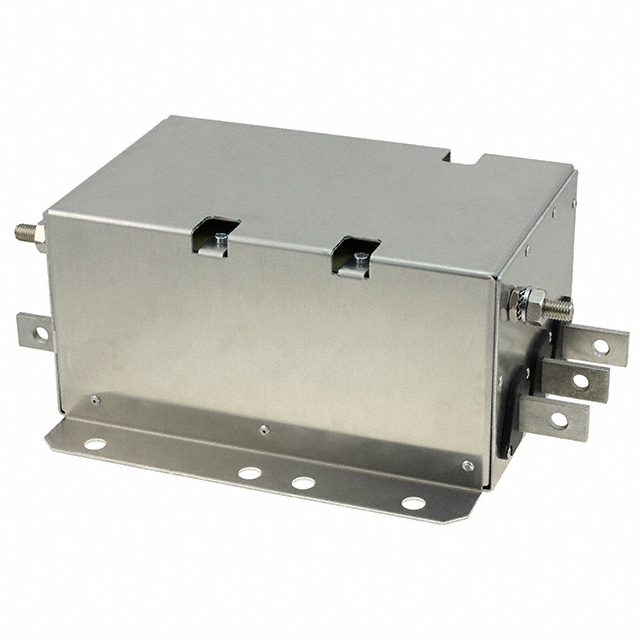

250APH12P

Active

TE Connectivity Corcom Filters

LINE FILTER 690VAC 250A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 690VAC 250A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	250APH12P

Applications	General Purpose
Configuration	Three Stage
Current	250 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Post
Voltage - Rated AC	690 V

LINE FILTER 690VAC 250A CHASSIS

Part	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC	Applications	Current	Filter Type	Mounting Type	Termination Style	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
TE Connectivity Corcom Filters 250APH12P	Three Stage	60 Hz	50 Hz	690 V	General Purpose	250 A	Three Phase (Delta)	Chassis Mount	Terminal Post	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 1115.08

General part information

Three Phase (Delta) EMC/EMI Line Filter 250 A 690V 50/60Hz Three Stage Terminal Post
