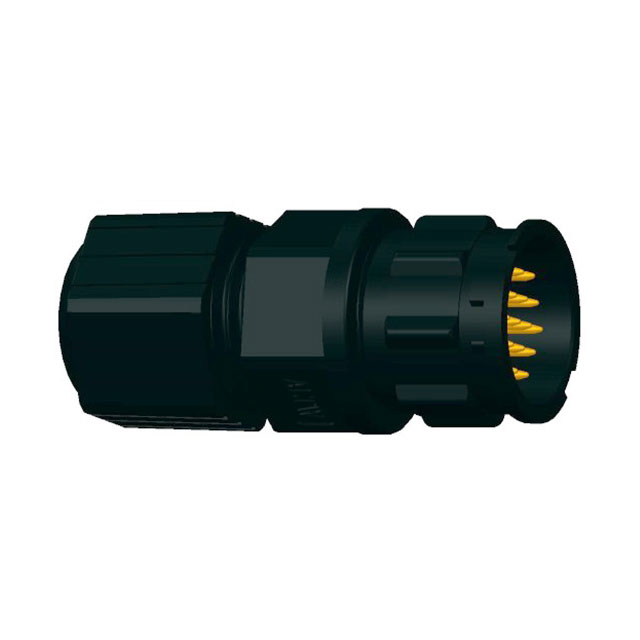

DD-18BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 18P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 18P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	DD-18BMMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded

Part	Ingress Protection	Color	Orientation	Shell Material	Features	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Primary Material	Connector Type	Contact Finish - Mating	Fastening Type	Number of Positions	Current Rating (Amps)	Backshell Material, Plating	Contact Material	Shielding
Amphenol LTW DD-18BMMA-LL7001	IP67 - Dust Tight Waterproof	Black	Keyed	Glass Filled Nylon Polyamide (PA)	Backshell	D	-40 °C	105 ░C	Free Hanging (In-Line)	Plastic	Male Pins Receptacle	Gold	Bayonet Lock	18	5 A	Nylon Polyamide (PA)	Copper Alloy	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Male Pins Solder Cup
