EHG.1B.305.CLL

Active

LEMO

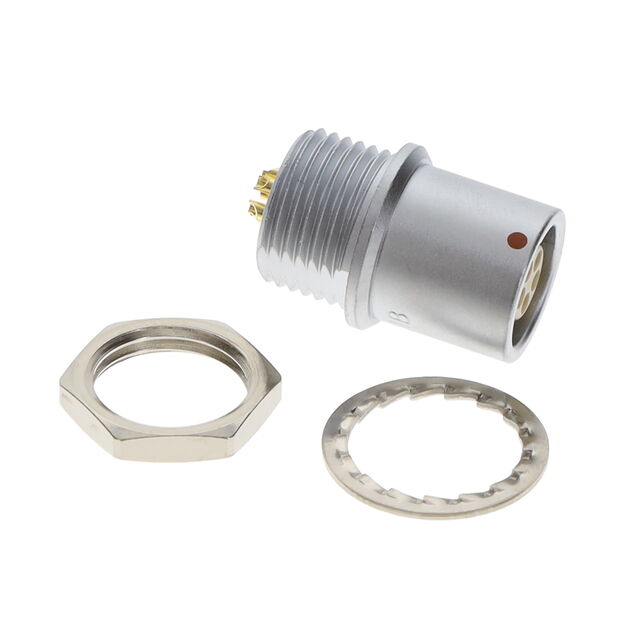

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EHG.1B.305.CLL

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.15
		10	$ 40.39
		25	$ 36.66
		50	$ 34.14
		100	$ 31.87
		250	$ 29.18

Description

General part information

EHG.1B Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EHG.1B.305.CLL	EHG.1B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Insert Shell
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	9 A	1.5 - 12 A
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Black
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Note	-	Contacts Not Included; Insert Not Included
Number of Positions	-	4 - 10
Number of Positions	-	16
Number of Positions	-	3
Number of Positions	-	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Anodized
Shell Material	Brass	Brass, Aluminum Alloy
Shell Size - Insert	305	303 - 803
Shielding	Shielded	Shielded, Unshielded
Termination	-	Solder

EHG.1B Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Current Rating (Amps)	Shielding	Fastening Type	Insert Material	Shell Size - Insert	Contact Material	Material Flammability Rating	Mounting Feature	Ingress Protection	Shell Material	Connector Type	Orientation	Number of Positions	Shell Finish	Contact Finish - Mating	Number of Positions	Mounting Type	Termination	Number of Positions [custom]	Number of Positions [custom]	Note	Housing Color
LEMO EHG.1B.310.CLL	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	2.5 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	310	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G	10	Chrome	Gold
LEMO EHG.1B.316.CLL	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	1.5 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	316	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G		Chrome	Gold	16
LEMO EHG.1B.307.CLV	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	6 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	307	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G	7	Chrome	Gold		Panel Mount, Right Angle, Through Hole	Solder
LEMO EHG.1B.303.CLL	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	12 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	303	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G		Chrome	Gold
LEMO EHG.1B.803.CLL2	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	10 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	803	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G		Chrome	Gold				3	1
LEMO EHG.1B.200.LC		-55 °C	250 °C					Unshielded	Push-Pull					Bulkhead - Rear Side Nut	IP50	Aluminum Alloy	Insert Shell	G		Anodized							Contacts Not Included; Insert Not Included	Black
LEMO EHG.1B.308.CLL	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	5 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	308	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G	8	Chrome	Gold
LEMO EHG.1B.304.CLL	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	10 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	304	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G	4	Chrome	Gold
LEMO EHG.1B.305.CLL	Silver	-55 °C	250 °C	59 Áin	1.5 Ám	Metal	9 A	Shielded	Push-Pull	Polyetheretherketone (PEEK)	305	Bronze	UL94 V-0	Bulkhead - Rear Side Nut	IP50	Brass	Receptacle, Female Sockets	G		Chrome	Gold
