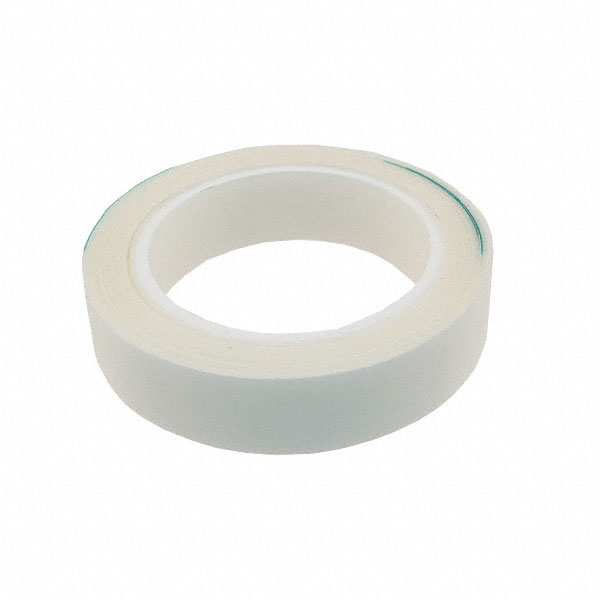

5425-0.625-36

Active

3M (TC)

TAPE POLYETHYLENE CLR 5/8"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConverter Markets Selection Guide

5425-0.625-36

Active

3M (TC)

TAPE POLYETHYLENE CLR 5/8"X36YDS

Deep-Dive with AI

DocumentsConverter Markets Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5425-0.625-36

Adhesive	Acrylic
Backing, Carrier	UHMW Polyethylene
Color	Clear
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Polyethylene
Temperature Range [Max]	107 °C
Temperature Range [Max]	225 °F
Temperature Range [Min]	-30 °F
Temperature Range [Min]	-34 °C
Thickness	0.13 mm
Thickness	5.1 mils
Thickness	0.0051 "
Thickness - Adhesive	2.1 mils
Thickness - Adhesive	0.0021 "
Thickness - Adhesive	0.053 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Width	0.625 in
Width	0.63 in
Width	16 mm

5425 Series

Part	Backing, Carrier	Shelf Life	Length	Length	Length	Shelf Life Start	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width	Width	Width	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Adhesive	Thickness	Thickness	Thickness	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [y]	Width [y]	Width [x]	Width [x]	Width
3M (TC) 3M 5425 1.375" X 36YD	UHMW Polyethylene	18 Months	36 yd	32.9 m	108 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm	1.38 "		34.93 mm	107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm
3M (TC) 5425-2-36	UHMW Polyethylene	18 Months	36 yd	32.9 m	108 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm				107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm	2 "	50.8 mm
3M (TC) 3M 5425 4.72" X 36YD	UHMW Polyethylene	18 Months	36 yd	32.9 m	108 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm	4.72 in		120 mm	107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm
3M (TC) 5425-10-5	UHMW Polyethylene	18 Months	5 yd	4.6 m	15 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm			254 mm	107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm			10 in
3M (TC) 7-5-5425	UHMW Polyethylene	18 Months	5 yd	4.6 m	15 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm				107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm			7 in	177.8 mm
3M (TC) 5425-0.625-36	UHMW Polyethylene	18 Months	36 yd	32.9 m	108 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm	0.63 in	0.625 in	16 mm	107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm
3M (TC) 5425-1.625-36	UHMW Polyethylene	18 Months	36 yd	32.9 m	108 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm	1.63 in 41.28 mm			107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm					1 5/8
3M (TC) 3M 5425 0.94" X 36YD	UHMW Polyethylene	18 Months	36 yd	32.9 m	108 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm				107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm
3M (TC) 5-5-5425	UHMW Polyethylene	18 Months	5 yd	4.6 m	15 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm				107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm	5 in	127 mm
3M (TC) 3M 5425 7" X 36YD	UHMW Polyethylene	18 Months	36 yd	32.9 m	108 ft	Date of Manufacture	Clear	16 °C 60 °F	27 °C 80 °F	0.003 in	3 mils	0.076 mm				107 °C	-30 °F	225 °F	-34 °C	Acrylic	0.13 mm	5.1 mils	0.0051 "	Polyethylene	2.1 mils	0.0021 "	0.053 mm			7 in	177.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 240.60

Description

General part information

5425 Series

Polyethylene Tape Acrylic Adhesive Clear 0.63" (16.00mm) 5/8" X 108' (32.9m) 36 yds

Documents

Technical documentation and resources

Converter Markets Selection Guide

Datasheet
