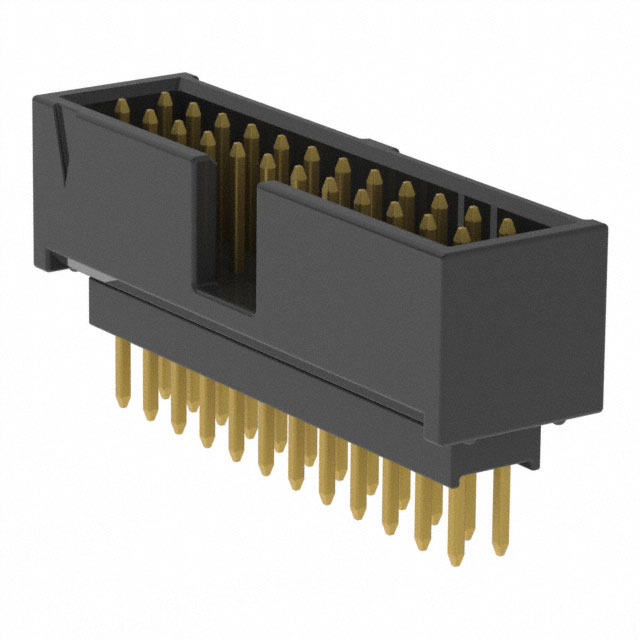

ZSS-112-01-G-D-450
ActiveSamtec Inc.
CONN HDR .100" 24POS
Deep-Dive with AI
Search across all available documentation for this part.
ZSS-112-01-G-D-450
ActiveSamtec Inc.
CONN HDR .100" 24POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZSS-112-01-G-D-450 |
|---|---|
| Connector Type | Elevated, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Length - Mating | 6.35 mm |
| Contact Length - Mating | 0.25 in |
| Contact Length - Post | 0.18 in |
| Contact Length - Post | 4.57 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 11.43 mm |
| Insulation Height | 0.45 in |
| Insulation Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length [x] | 0.63 " |
| Overall Contact Length [x] | 16 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
ZSS-112 Series
...
| Part | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Insulation Height | Insulation Height | Number of Rows | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Fastening Type | Number of Positions Loaded | Insulation Material | Contact Length - Mating | Contact Length - Mating | Insulation Color | Mounting Type | Current Rating (Amps) | Shrouding | Style | Contact Type | Features | Termination | Contact Material | Contact Finish - Post | Contact Finish - Mating | Insulation Height [custom] | Insulation Height [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | |||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | 0.1 in | 2.54 mm | 0.165 in | 4.19 mm | 12 | 16.89 mm | 0.665 in | 1 | Elevated Header | 105 ░C | -55 °C | Square | 0.83 in | 21.08 mm | UL94 V-0 | Push-Pull | All | Polyester Glass Filled | 6.35 mm | 0.25 in | Black | Through Hole | 3 A | Shrouded - 4 Wall | Board to Board Cable | Male Pin | Keying Slot | Kinked Pin Solder | Phosphor Bronze | Tin | |||||||||||||
Samtec Inc. | 0.1 in | 2.54 mm | 0.29 " | 7.37 mm | 24 | 2 | Elevated Header | 125 °C | -55 °C | Square | 1.13 in | 28.7 mm | UL94 V-0 | Push-Pull | All | Polyester Glass Filled | 6.35 mm | 0.25 in | Black | Through Hole | 3 A | Shrouded - 4 Wall | Board to Board Cable | Male Pin | Keying Slot | Solder | Phosphor Bronze | Tin | Gold | 0.84 in | 21.34 mm | 2.54 mm | 0.1 in | 3 µin | 0.076 µm | ||||||||
Samtec Inc. | 0.1 in | 2.54 mm | 12 | 11.43 mm | 0.45 in | 1 | Elevated Header | 125 °C | -55 °C | Square | UL94 V-0 | Push-Pull | All | Polyester Glass Filled | 6.35 mm | 0.25 in | Black | Through Hole | 3 A | Shrouded - 4 Wall | Board to Board Cable | Male Pin | Keying Slot | Solder | Phosphor Bronze | Gold | Gold | 10 çin | 0.25 çm | 0.18 in | 4.57 mm | 3 µin | 0.076 µm | 0.63 " | 16 mm | ||||||||
Samtec Inc. | 0.1 in | 2.54 mm | 12 | 16 mm | 0.63 in | 1 | Elevated Header | 125 °C | -55 °C | Square | 0.73 in | 18.54 mm | UL94 V-0 | Push-Pull | All | Polyester Glass Filled | 6.35 mm | 0.25 in | Black | Through Hole | 3 A | Shrouded - 4 Wall | Board to Board Cable | Male Pin | Keying Slot | Solder | Phosphor Bronze | Tin | Gold | 30 Áin | 0.76 Ám | 0.1 in | 2.54 mm | ||||||||||
Samtec Inc. | 0.1 in | 2.54 mm | 0.165 in | 4.19 mm | 12 | 16.9 mm | 0.665 in | 1 | Elevated Header | 105 ░C | -55 °C | Square | 0.83 in | 21.08 mm | UL94 V-0 | Push-Pull | All | Polyester Glass Filled | 6.35 mm | 0.25 in | Black | Through Hole | 3 A | Shrouded - 4 Wall | Board to Board Cable | Male Pin | Keying Slot | Solder | Phosphor Bronze | Tin | |||||||||||||
Samtec Inc. | 0.1 in | 2.54 mm | 24 | 2 | Elevated Header | 125 °C | -55 °C | Square | 0.93 in | 23.62 mm | UL94 V-0 | Push-Pull | All | Polyester Glass Filled | 6.35 mm | 0.25 in | Black | Through Hole | 3 A | Shrouded - 4 Wall | Board to Board Cable | Male Pin | Keying Slot | Solder | Phosphor Bronze | Gold | Gold | 0.84 in | 21.34 mm | 2.54 mm | 0.1 in | 10 çin | 0.25 çm | 0.09 " | 2.29 mm | 3 µin | 0.076 µm | ||||||
Samtec Inc. | 0.1 in | 2.54 mm | 24 | 11.43 mm | 0.45 in | 2 | Elevated Header | 125 °C | -55 °C | Square | UL94 V-0 | Push-Pull | All | Polyester Glass Filled | 6.35 mm | 0.25 in | Black | Through Hole | 3 A | Shrouded - 4 Wall | Board to Board Cable | Male Pin | Keying Slot | Solder | Phosphor Bronze | Gold | Gold | 2.54 mm | 0.1 in | 10 çin | 0.25 çm | 0.18 in | 4.57 mm | 3 µin | 0.076 µm | 0.63 " | 16 mm | ||||||
Samtec Inc. |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.57 | |
Description
General part information
ZSS-112 Series
Connector Header Through Hole 24 position 0.100" (2.54mm)
Documents
Technical documentation and resources
