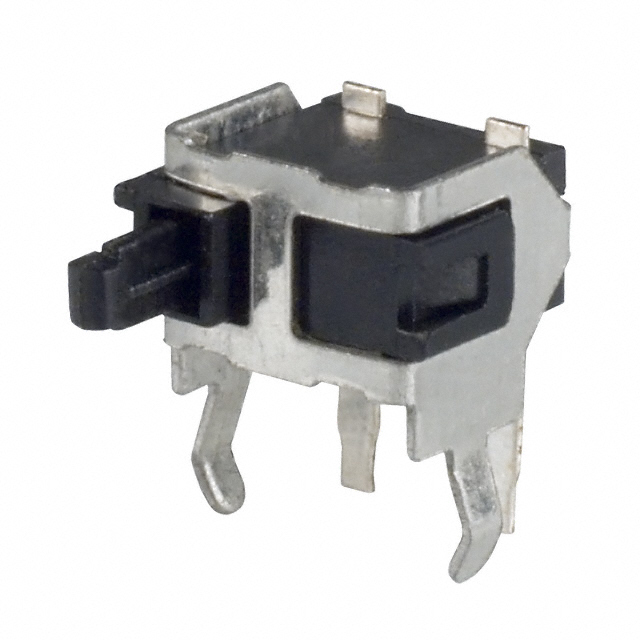

TD1105B
ObsoleteE-Switch
SWITCH DETECT SPST-NO 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TD1105B
ObsoleteE-Switch
SWITCH DETECT SPST-NO 0.1A 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TD1105B |
|---|---|
| Actuator Type | Overtravel Plunger |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 36 gf |
| Operating Position | 0.197 in |
| Operating Position | 5 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Pretravel | 0.015 in |
| Pretravel | 0.4 mm |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TD1105 Series
Switch SPST-NO Through Hole, Right Angle
