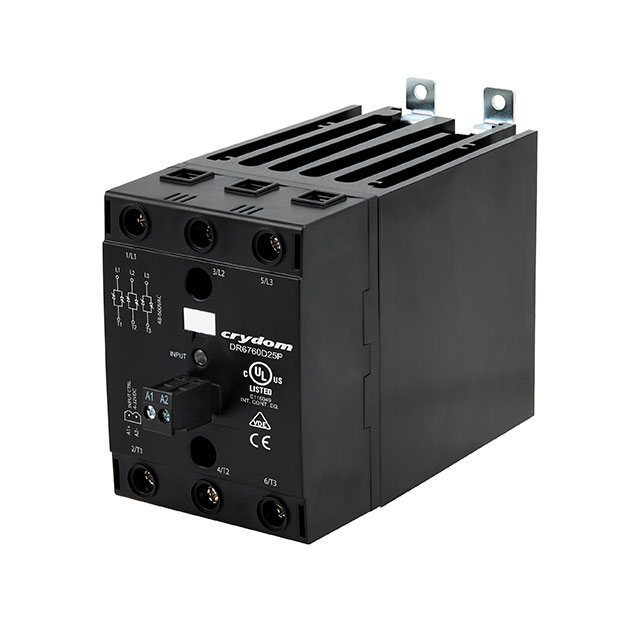

DR6760D25RP

Active

Sensata-Crydom

SSR RELAY 3PST-NO 25A 48-600V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY 3PST-NO 25A 48-600V

Technical Specifications

Parameters and characteristics for this part

Specification	DR6760D25RP

Approval Agency	cULus, VDE
Circuit	3PST-NO (3 Form A)
Load Current	25 A
Mounting Type	Chassis Mount, DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	600 V
Voltage - Load [Min]	48 V

Part	Output Type	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Circuit	Load Current	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]
Sensata-Crydom DR6760D25RP	AC	cULus VDE	32 V	4 V	3PST-NO (3 Form A)	25 A	SSR with Integrated Heat Sink	-40 °C	80 C	Chassis Mount DIN Rail	Screw Terminal	48 V	600 V
Sensata-Crydom DR6760D30P	AC Zero Cross	cULus VDE	32 V	4 V	3PST-NO (3 Form A)	30 A	SSR with Integrated Heat Sink	-40 °C	80 C	Chassis Mount DIN Rail	Screw Terminal	48 V	600 V
Sensata-Crydom DR6760D60P	AC Zero Cross	cULus VDE	32 V	4 V	3PST-NO (3 Form A)	60 A	SSR with Integrated Heat Sink	-40 °C	80 C	Chassis Mount DIN Rail	Screw Terminal	48 V	600 V
Sensata-Crydom DR6760D30RP	AC	cULus VDE	32 V	4 V	3PST-NO (3 Form A)	30 A	SSR with Integrated Heat Sink	-40 °C	80 C	Chassis Mount DIN Rail	Screw Terminal	48 V	600 V
Sensata-Crydom DR6760D75RP	AC	cULus VDE	32 V	4 V	3PST-NO (3 Form A)	75 A	SSR with Integrated Heat Sink	-40 °C	80 C	Chassis Mount DIN Rail	Screw Terminal	48 V	600 V
Sensata-Crydom DR6760D60RP	AC	cULus VDE	32 V	4 V	3PST-NO (3 Form A)	60 A	SSR with Integrated Heat Sink	-40 °C	80 C	Chassis Mount DIN Rail	Screw Terminal	48 V	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State 3PST-NO (3 Form A) SSR with Integrated Heat Sink
