AHES4191

Active

Panasonic Electric Works

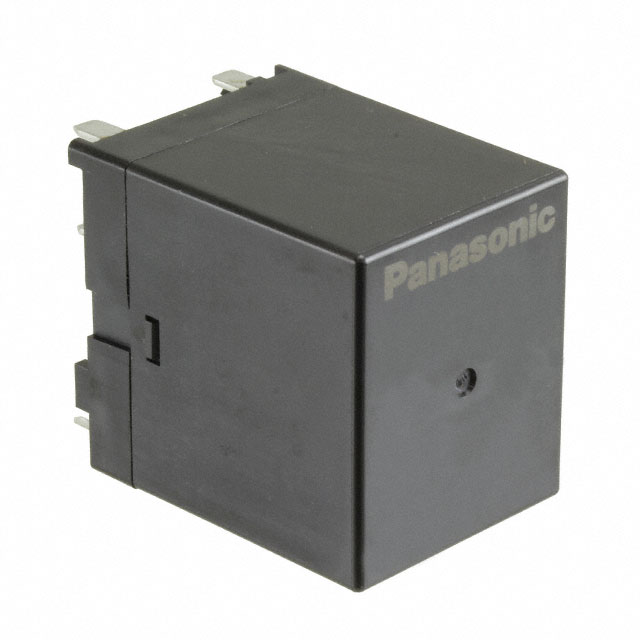

RELAY GEN PURPOSE 3PST 35A 12V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE 3PST 35A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Must Release Voltage	Load - Max Switching	Contact Rating (Current)	Relay Type	Mounting Type	Coil Voltage	Approval Agency	Switching Voltage	Termination Style	Must Operate Voltage	Coil Current	Coil Resistance	Contact Material	Release Time	Seal Rating	Operate Time	Contact Form	Coil Insulation	Features
Panasonic Electric Works AHES4192Q	-40 °C	70 °C	Non Latching	1.2 VDC	4400 W 19200 VA	40 A	General Purpose	Through Hole	24 VDC	CQC cURus VDE	110 VDC 480 VAC	PC Pin	18 VDC	78 mA	306.4 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Sealed - Flux Protection	30 ms	3PST-2NO/1NC (2 Form A 1 Form B)
Panasonic Electric Works AHES4191	-40 °C	55 °C	Non Latching	0.6 VDC		35 A	General Purpose	Through Hole	12 VDC	CQC cURus VDE	277 VAC	PC Pin	9 VDC	157 mA	76.6 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Sealed - Flux Protection	30 ms	3PST-2NO/1NC (2 Form A 1 Form B)	Class F
Panasonic Electric Works AHES4192	-40 °C	55 °C	Non Latching	1.2 VDC		35 A	General Purpose	Through Hole	24 VDC	CQC cURus VDE	277 VAC	PC Pin	18 VDC	78 mA	306 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Sealed - Flux Protection	30 ms	3PST-2NO/1NC (2 Form A 1 Form B)	Class F	Contact Weld Detection
Panasonic Electric Works AHES4195	-40 °C	55 °C	Non Latching	0.45 VDC		35 A	General Purpose	Through Hole	9 VDC	CQC cURus VDE	277 VAC	PC Pin	6.3 VDC	209 mA	43 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Sealed - Flux Protection	30 ms	3PST-2NO/1NC (2 Form A 1 Form B)	Class F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay 3PST-2NO/1NC (2 Form A, 1 Form B) 12VDC Coil Through Hole
