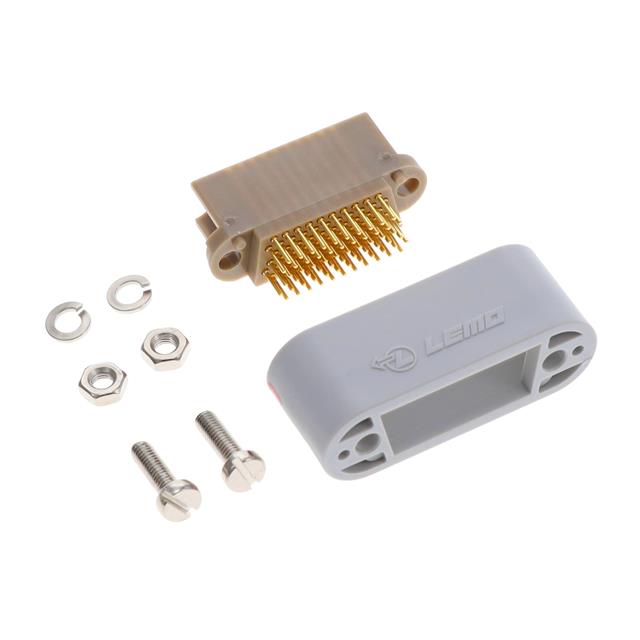

EGG.1R.365.GLN

Active

LEMO

CONN RCPT 65POS SCREW MOUNT

Search across all available documentation for this part.

Active

LEMO

CONN RCPT 65POS SCREW MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 160.44

General part information

65 Position Receptacle Connector Screw Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EGG.1R.365.GLN	EGG.1R Series

Applications	General Purpose, Medical, Automotive	General Purpose, Medical, Automotive
Cable Termination	-	Crimp, Solder
Color	-	Gray
Connector Type	Receptacle	Receptacle
Contact Shape	Circular	Circular
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Mounting Flange	Mounting Flange, IP50
Insulation Color	Gray	Gray, Green
Insulation Height	14.5 mm	14.5 mm
Insulation Height	0.571 in	0.571 in
Mounting Type	Screw Mount	Screw Mount, Panel Mount, Screw In
Number of Positions	65	28 - 67
Number of Positions Loaded	All	All
Number of Rows	-	6
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder, Crimp
Wire Gauge	-	44 AWG
Wire Type	-	Discrete

CONN RCPT 65POS SCREW MOUNT

Part	Contact Shape	Insulation Height	Insulation Height	Connector Type	Insulation Color	Applications	Number of Positions Loaded	Features	Style	Contact Type	Mounting Type	Number of Positions	Fastening Type	Termination	Wire Type	Number of Rows	Wire Gauge	Color	Cable Termination
LEMO EGG.1R.365.GLN	Circular	14.5 mm	0.571 in	Receptacle	Gray	Automotive, General Purpose, Medical	All	Mounting Flange	Board to Cable/Wire	Female Socket	Screw Mount	65	Push-Pull	Solder
LEMO EGG.1R.336.VLM	Circular	14.5 mm	0.571 in	Receptacle	Green	Automotive, General Purpose, Medical	All	Mounting Flange	Board to Cable/Wire	Female Socket	Screw Mount	36	Push-Pull	Crimp
LEMO EGG.1R.367.GLM				Receptacle				IP50		Female Socket		67			Discrete	6	44 AWG	Gray	Crimp
LEMO EGG.1R.328.GLN				Receptacle						Female Socket	Panel Mount, Screw In	28	Push-Pull		Discrete			Gray	Solder
LEMO EGG.1R.365.GLM	Circular	14.5 mm	0.571 in	Receptacle	Gray	Automotive, General Purpose, Medical	All	Mounting Flange	Board to Cable/Wire	Female Socket	Screw Mount	65	Push-Pull	Crimp
LEMO EGG.1R.336.ZYM				Receptacle						Female Socket	Panel Mount, Screw In	36	Push-Pull						Crimp
