General part information

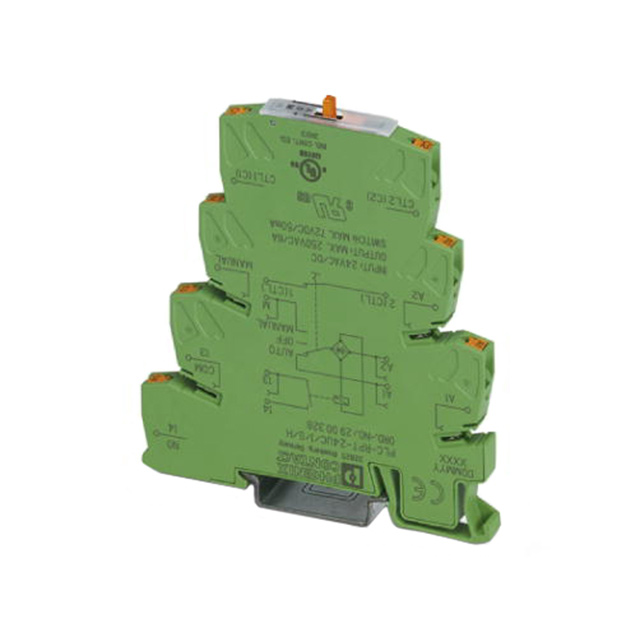

Industrial Relays PLC-RPT- 24DC/21-21
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2900328 | PLC-RPT Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE |
| Coil Current | 11 mA | 11 - 18 mA |
| Coil Resistance | 2.18 kOhms | 1.37 - 1333 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 24 VDC |
| Contact Form | SPST-NO (1 Form A) | DPDT (2 Form C), SPDT (1 Form C), SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A | 6 - 10 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 6 ms | 6 - 8 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -40 - -20 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 10 - 15 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Spring Terminal | Spring Terminal |
Industrial Relays PLC-RPT- 24DC/21-21
| Part | Release Time | Operate Time | Contact Material | Contact Form | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Mounting Type | Coil Current | Coil Resistance | Features | Switching Voltage | Relay Type | Contact Rating (Current) | Termination Style | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2900330 | 10 ms | 8 ms | Silver Nickel (AgNi) | DPDT (2 Form C) | 24 VDC | -40 °C | 60 °C | CE, UKCA | DIN Rail | 18 mA | 1333 Ohms | Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 6 A | Spring Terminal | Non Latching |
Phoenix Contact 2900293 | 10 ms | 8 ms | Silver Nickel (AgNi) | SPDT (1 Form C) | 24 VAC | -40 °C | 60 °C | CE, UKCA | DIN Rail | 17.5 mA | 1.37 kOhms | Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 10 A | Spring Terminal | Non Latching |
Phoenix Contact 2900328 | 15 ms | 6 ms | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | 24 VAC | -20 C | 60 °C | CE, UKCA | DIN Rail | 11 mA | 2.18 kOhms | Lighted Indicator, Socket Included | 250 VAC, 250 VDC | General Purpose | 6 A | Spring Terminal | Non Latching |
