Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.51 | |
| 10 | $ 62.16 | |||
| 50 | $ 57.19 | |||
| 100 | $ 52.84 | |||
General part information

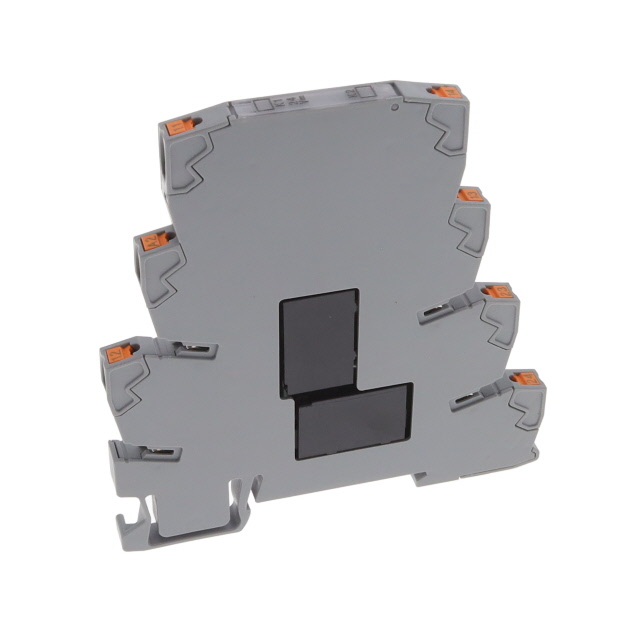

General Purpose Relay SPST-NO (1 Form A) x 2 24VDC Coil DIN Rail
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2901639 |
|---|---|
| Approval Agency | UKCA, CE |
| Coil Current | 7 mA |
| Coil Resistance | 3.43 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) x 2 |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3.5 A |
| Features | Socket Included, Diode, Lighted Indicator |
| Load - Max Switching | 875 VA, 105 W |
| Mounting Type | DIN Rail |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Spring Terminal |
RELAY GEN PURPOSE SPST 3.5A 24V
| Part | Approval Agency | Operate Time | Load - Max Switching | Termination Style | Features | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Coil Type | Coil Current | Release Time | Contact Material | Contact Form | Switching Voltage [Max] | Coil Resistance | Coil Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2901639 | CE, UKCA | 4 ms | 105 W, 875 VA | Spring Terminal | Diode, Lighted Indicator, Socket Included | 3.5 A | -20 C | 60 °C | DIN Rail | Non Latching | 7 mA | 6 ms | Silver Nickel (AgNi) | SPST-NO (1 Form A) x 2 | 30 VDC, 250 VAC | 3.43 kOhms | 24 VDC | General Purpose |
