1217345-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 16-18AWG 0.110
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217345-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 16-18AWG 0.110
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217345-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 0.17 " |
| Insulation Diameter [Max] [diameter] | 4.32 mm |
| Insulation Diameter [Min] [diameter] | 2.79 mm |
| Insulation Diameter [Min] [diameter] | 0.11 " |
| Length - Overall [x] | 16.64 mm |
| Length - Overall [x] | 0.655 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 6.35 mm |
| Tab Length | 0.25 in |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 4000 | $ 0.08 | ||
| 8000 | $ 0.07 | |||
| 12000 | $ 0.07 | |||
1217345 Series
CONN QC RCPT 16-18AWG 0.110
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation | Length - Overall [x] | Length - Overall [x] | Mounting Type | Termination | Terminal Type | Gender | Wire Gauge [Min] | Wire Gauge [Max] | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Contact Material | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217345-1 | 2.79 mm | 0.17 " | 4.32 mm | 0.11 " | Non-Insulated | 16.64 mm | 0.655 in | Free Hanging (In-Line) | Crimp | Standard | Female | 16 AWG | 18 AWG | 0.02 " | 0.51 mm | 6.35 mm | 0.25 in | Brass | 2.79 mm | 0.11 " |
Description
General part information
1217345 Series

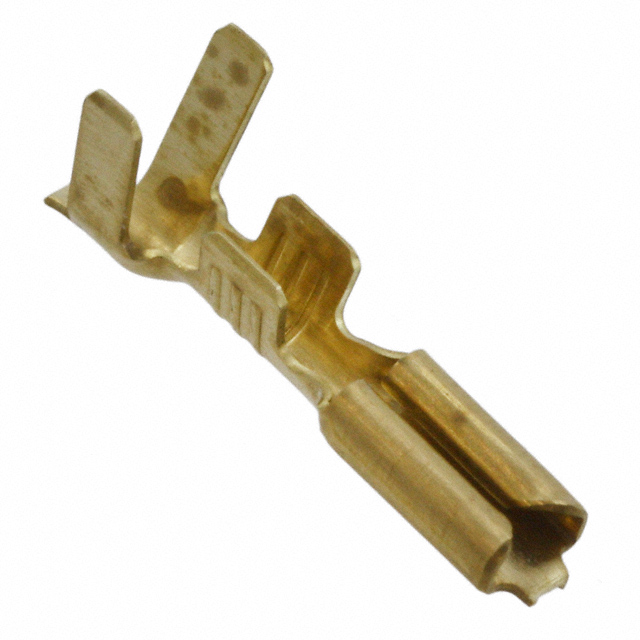

0.110" (2.79mm) Quick Connect Female 16-18 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
