TG-A486A-300-300-1.0-1A

Obsolete

t-Global Technology

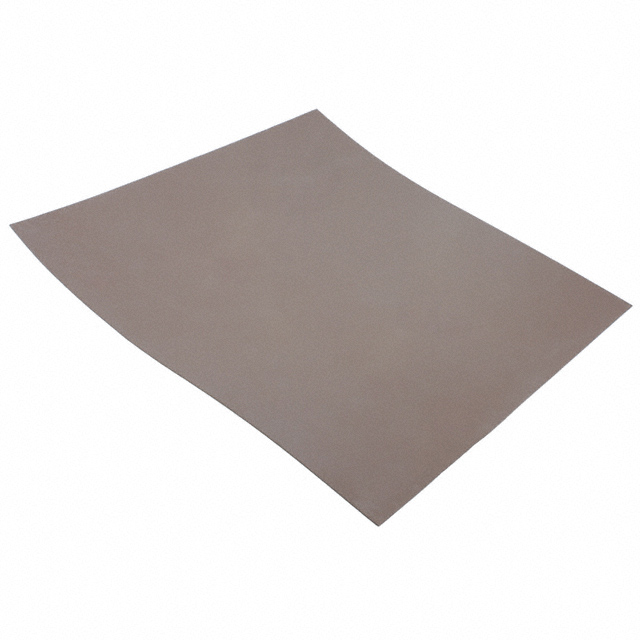

THERM PAD 300MMX300MM W/ADH

Search across all available documentation for this part.

Obsolete

t-Global Technology

THERM PAD 300MMX300MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shelf Life	Type	Shelf Life Start	Thermal Conductivity	Outline [y]	Outline [x]	Shape	Thickness	Thickness	Adhesive	Thickness [custom]	Thickness [custom]
t-Global Technology TG-A486A-300-300-2.0-0	Henna	24 Months	Conductive Pad Sheet	Date of Manufacture	4 W/m-K	300 mm	300 mm	Square	0.079 in	2 mm
t-Global Technology TG-A486A-150-150-0.5-1A	Henna	12 Months	Conductive Pad Sheet		4 W/m-K	150 mm	150 mm	Square	0.0197 in	0.5 mm	Adhesive - One Side
t-Global Technology TG-A486A-100-100-5.0-0	Henna	24 Months	Conductive Pad Sheet	Date of Manufacture	4 W/m-K	100 mm	100 mm	Square	0.197 "	5 mm
t-Global Technology TG-A486A-150-150-2.0-1A	Henna	12 Months	Conductive Pad Sheet		4 W/m-K	150 mm	150 mm	Square	0.079 in	2 mm	Adhesive - One Side
t-Global Technology TG-A486A-100-100-2.0-1A	Henna	12 Months	Conductive Pad Sheet		4 W/m-K	100 mm	100 mm	Square	0.079 in	2 mm	Adhesive - One Side
t-Global Technology TG-A486A-300-300-1.0-1A	Henna	12 Months	Conductive Pad Sheet		4 W/m-K	300 mm	300 mm	Square	0.0394 in	1 mm	Adhesive - One Side
t-Global Technology TG-A486A-300-300-10.0-0	Henna	24 Months	Conductive Pad Sheet	Date of Manufacture	4 W/m-K	300 mm	300 mm	Square	0.394 in	10 mm
t-Global Technology TG-A486A-300-300-0.3-0	Henna	24 Months	Conductive Pad Sheet	Date of Manufacture	4 W/m-K	300 mm	300 mm	Square				0.305 mm	0.012 "
t-Global Technology TG-A486A-150-150-5.0-1A	Henna	12 Months	Conductive Pad Sheet		4 W/m-K	150 mm	150 mm	Square	0.197 "	5 mm	Adhesive - One Side
t-Global Technology TG-A486A-150-150-5.0-0	Henna	24 Months	Conductive Pad Sheet	Date of Manufacture	4 W/m-K	150 mm	150 mm	Square	0.197 "	5 mm
