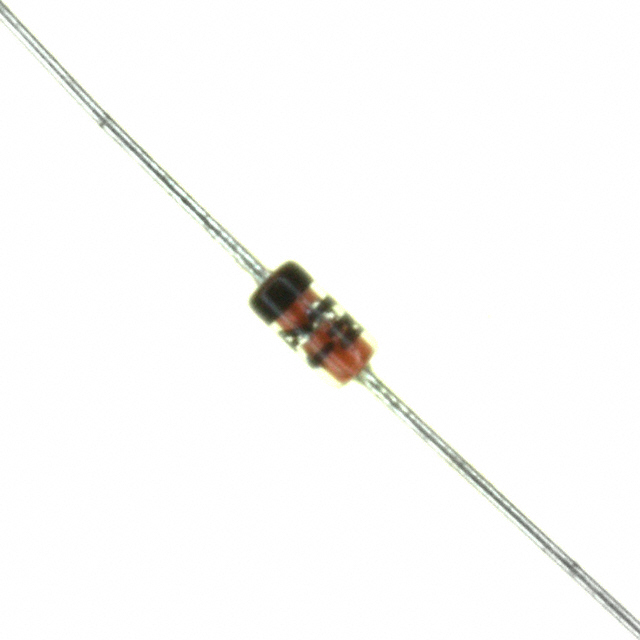

1N4148T-73

Active

Rohm Semiconductor

DIODE GEN PURP 75V 150MA GSD

Search across all available documentation for this part.

Active

Rohm Semiconductor

DIODE GEN PURP 75V 150MA GSD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1N4148T-73	1N4148 Series

Capacitance @ Vr, F	4 pF	4 pF
Current - Average Rectified (Io)	150 mA	150 mA
Current - Reverse Leakage @ Vr	5 µA	5 µA
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction [Max]	200 C	200 C
Operating Temperature - Junction [Min]	-65 C	-65 C
Package / Case	Axial, DO-35, DO-204AH	Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	4 ns	4 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	GSD	GSD
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V	75 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 V

DIODE SWITCHING SI 100V 0.45A 2-PIN GSD AMMO

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Mounting Type	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Package / Case	Supplier Device Package
Rohm Semiconductor 1N4148T-77	1 V	200 C	-65 C	4 pF	Standard	150 mA	5 µA	Through Hole	Any Speed	200 mA	75 V	4 ns	Axial, DO-204AH, DO-35	GSD
Rohm Semiconductor 1N4148T-73	1 V	200 C	-65 C	4 pF	Standard	150 mA	5 µA	Through Hole	Any Speed	200 mA	75 V	4 ns	Axial, DO-204AH, DO-35	GSD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 75 V 150mA Through Hole GSD
