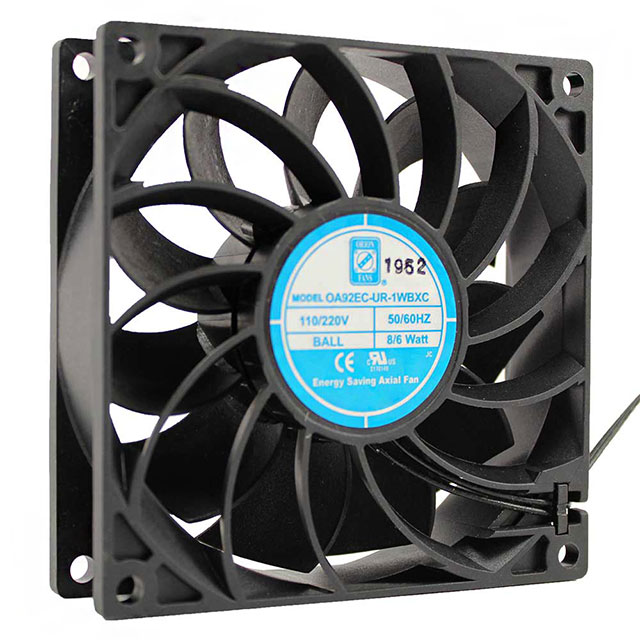

OA92EC-UR-1WBXC

Active

Orion Fans

EC FAN 92X25MM 85-265VAC 56CFM

Search across all available documentation for this part.

Active

Orion Fans

EC FAN 92X25MM 85-265VAC 56CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OA92EC-UR-1WBXC

Air Flow	56 CFM
Air Flow	1.57 mł/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Dual Voltage, Electronic Commutation (EC)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2600 RPM
Termination	2 Wire Leads
Voltage - Rated [Max]	220 VAC
Voltage - Rated [Min]	110 VAC
Voltage Range [Max]	265 VAC
Voltage Range [Min]	85 VAC
Weight	0.225 lb
Weight	102.06 g
Width [y]	25 mm

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Bearing Type	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Features	Termination	Weight	Weight	Width [y]	Noise	Approval Agency	RPM	Voltage - Rated [Min]	Voltage - Rated [Max]	Lifetime @ Temp.
Orion Fans OA92EC-UR-1WBXC	70 °C	70 °C	-10 °C	-10 °C	56 CFM	1.57 mł/min	Ball	Tubeaxial	265 VAC	85 VAC	Polybutylene Terephthalate (PBT)	Dual Voltage Electronic Commutation (EC)	2 Wire Leads	0.225 lb	102.06 g	25 mm	35 dB	CE cURus TUV UR	2600 RPM	110 VAC	220 VAC	70000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 110/220VAC Square - 92mm L x 92mm H Ball 56.0 CFM (1.57m³/min) 2 Wire Leads
